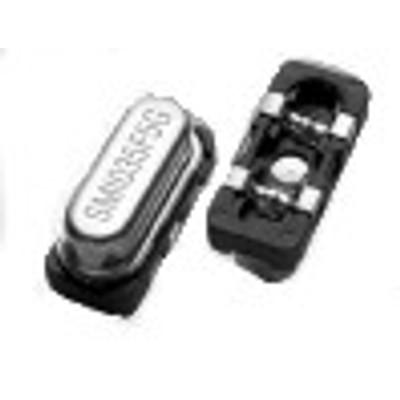

Euroquartz - Model 92SMX SMD -Cylindrical Crystal
FromEuroquartz Ltd
SMD crystal, AT-Cut in 92SMX package. Operation over -40° to +125°C
Most popular related searches
- Temperature range -40° to +125°C available
- Resistance weld, hermetically sealed package
- Fully RoHS compliant
- Frequncy range 3.579545MHz to 30.0MHz
- Frequency Range: 3.579545MHz to 30.000MHz
- 00MHz Crystal Cut/Oscillation Mode: AT-Cut, Fundamental
- Calibration Tolerance at 25ºC*: from ±10ppm (±10, ±15 or ±20ppm standard)
- Storage Temperature: -55°~+125°C
- Shunt Capacitance (C0): 5pF typical
- Load Capacitance (CL): Series or 10pF to 32pF (Customer specified CL)
- Ageing: <±3ppm per year at +25°C
- Drive level: 100 µW max. (10 µW for testing.)
- Reflow Soldering: 10s maximum at 250°C
- Package: Metal base, metal lid, Hermetic seal, resistance-Weld
- Packaging: 24mm EIA tape and reel, 330mm reel, 2000 pieces per ree
