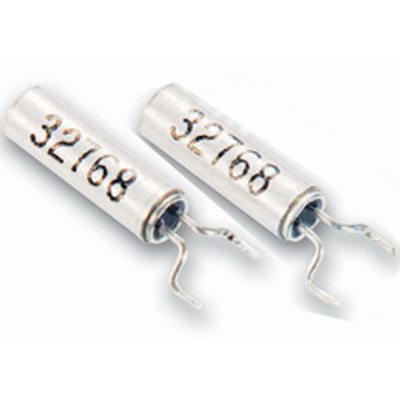

Euroquartz - Model 2.0 x 6.0mm SMD -Cylindrical Crystal

SHARE

Available with two styles of formed lead configurations, 2mm x 6mm SMD crystals have excellent shock resistance. They are low-cost components and an efficient solution for general real time clock applications.

  • Low-cost and low mass SMD crystal, 32.768kHz
  • Nominal Frequency: 32.7680kHz
  • Calibration Tolerance: ±20ppm m@25°C
  • Frequency Stability Parabolic -0.034±0.006ppm/°C2
  • Turnover Temperature: 25°±5°C
  • Operating Temperature Range: -40° to +85°C
  • Storage Temperature Range: -55° to +125°C
  • Equivalent Series Resistance: 35kΩ maximum
  • Load Capacitance (CL): 12.5pF or 6pF Moti
  • Motional Capacitance (C1): 0.003pF typical
  • Shunt Capacitance (C0): 1.35pF typical
  • Capacitance Ratioo: 150 typical
  • Drive Level: 1µW maximum
  • Insulation Resistance: 500MΩ maximum
  • Ageing: ±3ppm/year maximum
  • Sealing: 1x10-6µPa.m3/s maximum
  • Shock Resistance: ±5ppm maximum, 3000g x 0.3m/s ½ sine, 3 planes
  • Soldering Temperature: 240°C for 7 seconds maximum
  • Real-time clock oscillators
