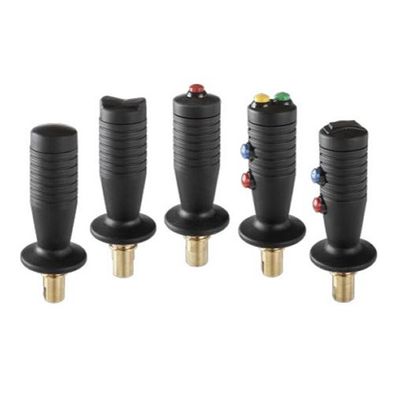

Unify Electronic - Model ID1 and ID2 Series -Cylindrical Hadles
ID1 and ID2 series cylindrical handles can be supplied either loosen or fitted on our electric and hydraulic joysticks or mounted on the control rods of our directional control valves. They are a valid alternative to the ergonomic grip’ series IE1 when compact dimensions and lower cost are required. ID2 handles can be configured with up to a maximum of 5 push buttons switches or combination of 2 push buttons and 1 three positions rocker switch.
The body of the handle is made of black thermoplastic material which is suitable for a wide ambient temperature excursion, it has a good resistance against UV rays and it is compatible with hydraulic mineral oils. ID2 handles are fitted with waterproof micro-switches rated for a max current of 5 A resistive (3 A inductive) and max. voltage of 28 VDC, standard IP64 protection class or IP68 on request. These push buttons are provided with stiff easy serviceable caps that are available in a choice of 9 different colours and in 2 height sizes to optimize operator’s tactile feeling and ergonomics for a variety of application.
Handle:
- Body material : Nylon®
- Resistance against UV rays : Good
- Resistance against hydraulic mineral oils : Good
- Protection class : IP 54
- Ambient temperature range : from -20° up to + 60°C
- Mounting adaptors & rods material : Zinc plated steel & brass
Micro-switches:
- Max. electric load: 5 A resistive, 3 A inductive
- Supply voltage: From 5 up to 28 VDC
- Electrical life: 25.000 cycles @ max. load up to 1.000.000 cycles at 1A resistive load
- Mechanical life: 1.000.000 cycles
- Protection class: IP 64 (IP 68 on request)
- Working temperature range: from - 55° up to + 85°C
- Working stroke: 2 mm max.
- Control force: 75,0±20 N
