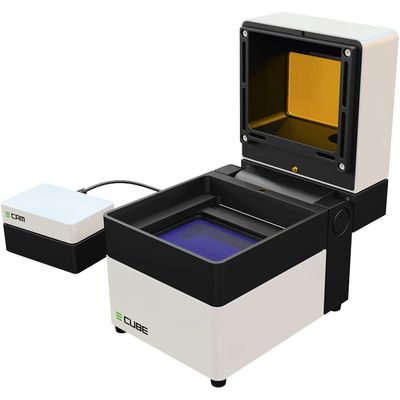

Cytecs - Model E-CUBE -Compact Stand-Alone Gel-Electrophoresis and Gel Documentation System

SHARE

Completely Stand-Alone DNA/RNA Analysis with Live Imaging.

Most popular related searches
gel electrophoresis
gel documentation
electrophoresis gel
gel documentation system
electrophoresis chamber
electrophoresis system
electrophoresis
RNA electrophoresis
RNA analysis
blue light LED illuminator
SYSTEM COMPONENTS
Integrated Micro Computer & Digital Camera
  • computer with software for system control,
    data storage and wireless data transfer (Wi-Fi)
  • integrated digital colour camera for gel documentation
  • intuitive handling by smart interface design
Live Observation & Documentation of DNA/RNA
  • excitation with visible light, using a non-toxic fluorescent dye, which gives a higher sensitivity than the toxic ethidium bromide
  • highest sensitivity detection (below 2 ng/ fragment)
  • direct sample staining
  • no pre- or post-run gel staining necessary
Electrophoresis Unit
  • runs with quality-checked precasted gels, cost and time-effective
  • easily removable electrophoresis chamber
  • external power supply 24 V
BLUE LED Illumination
  • no UV-light emission to the laboratory staff
  • illumination by visible blue LED light
  • homogenous illumination provides for accurate semi quantification of separated samples
  • high life span of the light source (LED panel >50,000 hours)
LIVE IMAGING + DOCUMENTATION + ANALYSIS
HIGHLIGHTS OF THE E-CUBE
  • all-in-one DNA/RNA electrophoresis device including gel electrophoresis chamber, LED illumination, live display, documentation by integrated digital camera and software for image capture
  • integrated computer system
  • easy benchtop operation by daylight: no darkroom required
  • availability of dedicated non-toxic high sensitivity stain
  • quick and easy data transfer by USB port or Wi-Fi
  • extremely robust and cost-effective
  • necessary lab space (foot print) only 0.2m2

  • Height: 187 mm (250 mm with E-CAM)
  • Width: 150 mm
  • Length: 192 mm
  • Weight: 3500 g
  • Power supply: 220 V AC => 24 V DC
  • Light source: High Power LED Panel, Blue, λ= 470 nm
