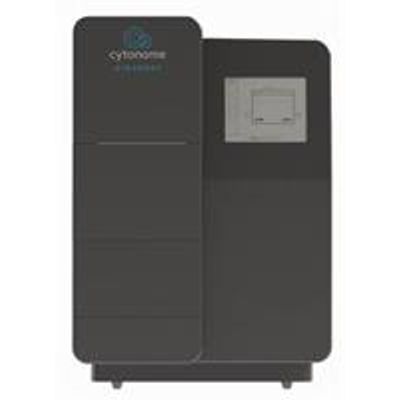

Cytonome GigaSort -Â Cell Purification System
FromCytonome/ST, LLC
Introducing the GigaSort Cell Purification System, the only massively parallel cell sorter designed for use in bioprocessing applications where high throughput, sterility and bio-containment are required.
Most popular related searches
microfluidic chip
sorting system
flow cell
sample concentration
biohazard containment
biohazard container
optical detection
microfluidic
microfluidic technology
bioprocess
The Cytonome GigaSortâ„¢ system is a revolutionary approach to high-speed cell sorting and bioprocessing. It utilizes a highly parallel microfluidic chip design, coupled with an advanced optical, electronic, and fluidic control system. Through the combination and integration of multiple groundbreaking technologies, the Cytonome GigaSortâ„¢ system is specifically designed for high throughput sorting where sterility, cell viability and cGMP requirements are critical.
- Single-use, enclosed, gamma irradiated, disposable fluidic set for each cell purification run
- Unique, gentle microfluidic sort switching technology
- Massive parallelism for high speed cell processing volumes
- cGMP cell purification
- Increased cell integrity, survival
- Sorting efficiency and speed
- Sterility of sorting
- Optimized for clinical sort applications
- Safety for lab personnel and cell product
- Increased sort speeds by design
Cell Types
- Mammalian
Sample Concentration
- 1 million to 6 million cells per ml (cell type dependent)
Sample Flow Rate
- 50 ml per hour
Cell Measurement Parameters
- Light scatter, light extinction, fluorescence (PE, PE-TxRed, PE-Cy5, PE-Cy7; 6 parameters (standard)
- Alternative fluorescence wavelengths available
Cell Analysis Rate
- Up to 850 million cells per hour
Cell Purification Rate
- Up to 180 million cells per hour (depending upon your application)
Sort Purity
- >99%
Biohazard Containment
- Fully enclosed fluidic system, single use disposable
Sort Technology
- Enclosed microfluidic switch
Flow Cell Type
- Parallel microfluidic chip, 24 microsorters
- Additional microfluidic chip formats available
Laser Wavelength
- 532 nm (green) (standard)
- Alternative laser wavelengths available
Optical Detection
- Photomultipliers
Signal Dynamic Range
- 1 to 50,000 (4.5 orders of magnitude)
Connectivity
- Ethernet
User Alerts
- Sort status, run errors
Dimensions
- 122 cm x 89 cm x 204 cm (48 in x 35 in x 80 in)
Facility Requirements
- Single 110/240V AC outlet, compressed gas
