Cytonome/ST, LLC

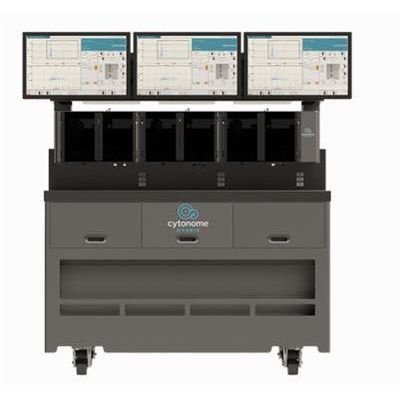

Cytonome Hydris - Industrial-Scale Cell Purification System
FromCytonome/ST, LLC
Introducing the Hydris high throughput cell purification system. Using the power of parallel technology and advanced automation to improve the efficiency of routine and repetitive cell sorting tasks.
Most popular related searches
automation control system
cell culture flask
biological safety cabinet
sorting system
biohazard containment
biohazard container
flow cell
sample concentration
cell culture
biological safety
Building on the proven design and worldwide operational experience of the Cytonome Genesis III™ platform, the Cytonome Hydris™ system leverages the power of full-scale, high-throughput cell sorting by means of parallel architecture with optimized droplet sorting technology. The Cytonome Hydris™ system can leverage custom, application-specific designs with independent sort head monitoring for ease-of-use. The innovative design provides increased efficiency and productivity benefits and thus can contribute significantly to lean manufacturing.
- Up to three (3) sort head assemblies running in parallel
- Individually dedicated sort head performance monitoring
- Jet-in-air droplet sorting reliability
- Optical and laser upgrade paths
- Optional biohazard containment module(s)
- Automated control systems
- High throughput combined sort speeds
- Sorting efficiency and reliability
- Proven performance, reliability
- Flexibility in sorting applications
- Safety for lab personnel
- Walk-away sorting
Cell Types
- Mammalian
- Additional cell types possible (i.e. yeast, bacteria)
Sample Concentration
- 1,000 to 100 million cells per ml (cell type dependent)
Sample Flow Rate
- 4 ml per hour (three 12 x 75mm tubes as input)
Cell Measurement Parameters
- Light scatter, Phycoerythrin (PE) emission (standard)
- Additional fluorescence wavelengths possible
Cell Analysis Rate
- Up to 1 billion cells per hour
Cell Purification Rate
- Up to 300 million cells per hour (depending upon your application)
Sort Collection Vessels
- 1.5 ml, 5 ml, 15 ml, 50 ml tubes; cell culture flasks
- Other collection devices possible
Sort Purity
- >99%
Biohazard Containment
- Optional biological safety cabinet and aerosol evacuation systems
Sort Technology
- Microdroplet sorting
Flow Cell Type
- Ceramic tip, 70 micron orifice (standard)
- Optional disposable polymer tips
Laser Wavelength
- 488 nm (blue) (standard)
- Additional laser wavelengths available
Optical Detection
- Photomultipliers
Sensitivity
- < 250 molecules of equivalent fluorescein
Signal Dynamic Range
- 1 to 50,000 (4.5 orders of magnitude)
Connectivity
- Ethernet
- Additional remote display monitor (HDMI, touch)
User Alerts
- Sort status, run errors
Dimensions
- 122 cm x 89 cm x 204 cm (48 in x 35 in x 80 in)
Facility Requirements
- Single 110/240V AC outlet, compressed gas, vacuum
