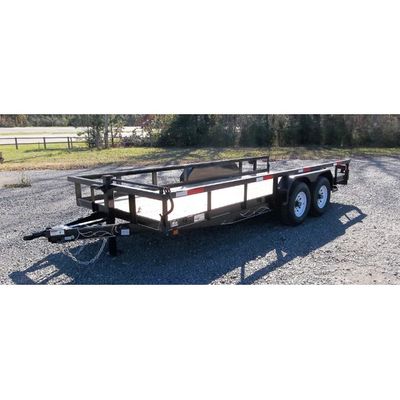

D & P - Model HM 60 Series -Utility Trailer

Design Features:

• Frame:  5”x3”x1/4” angle
• Tongue:  6” channel wrap with 3” channel flat brace
• Top Rail:  3” square tubing
• Crossmembers:  3” channel
• Uprights:  3”x2”x3/16” angle
• Floor:  treated pine
• Fenders:  HD diamond plate-double broke w/tear drop
• Ramps:  48” slide in style
• Spare Rack

Undercarriage:

• 2-6000# axles w/grease hubs
• 5-leaf 2” wide slipper spring suspension w/channel type equalizer
• Electric brakes on all wheels
• ST235/80R16 LR-E tires (radials)
• 16” white mod wheels

Coupler & Jack:

• 2-5/16” bulldog style a-frame coupler
• 3/8” HD safety chains w/snap hooks
• 10000# drop leg jack

Lights & Electrical

• DOT required lighting
• 4-way plug

• 83”x 14’ HM 12K
• 83”x 16’ HM 12K
• 83”x 18’ HM 12K
• 83”x 20’ HM 12K
