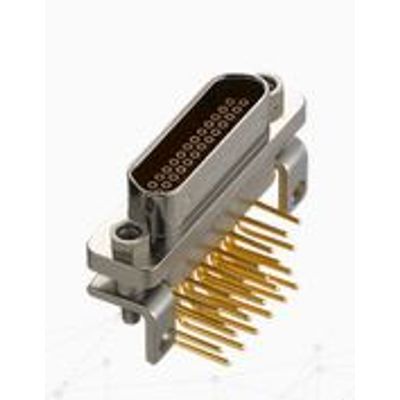

Sunkye - D-Sub Type Micro Right Angle PCB Connector
D-sub connectors are bulky and durable, which made them suitable for being applied in harsh environments where durability is extremely important. They can also be compatible with many old-fashioned devices. For these advantages, D-sub is widely used in factories, manufacturing workshops and industrial environments.
Micro D-sub Right Angle PCB Connector is most frequently used connector for flexible and rigid printed circuit boards. Several tail lengths available makes it ideal for flex-to-board applications, which widely used in the military area, aerospace, aviation, electrical, ship-building, defense system, etc. PCB right angle connector is a kind of mil spec D-sub connector, which is specially applied to connect and fix printed circuit boards. It usually adopts pin-in type and has super-strong clamping force of FPC cable.
Performance of Micro D-sub Right Angle PCB Connector
- Contact Pitch * 0.050˝ (1.27 mm)
- TEMPERATURE RANGES *
- STANDARD -55°C / +125°C
Contact arrangements of Micro D-sub Right Angle PCB Connector
- Metal shell: 9, 15, 21,25,31,37,51,66,74, 100 contacts
- Plastic shell: 9, 15, 21,25,31,37, 51 contacts
Introduction of Micro D-sub Right Angle PCB Connector
- Series * Micro D Connector
- Terminal Mounting * D-sub PCB Type 90°angle to PCB type (also known as right angle to PCB type)
- PCB Tail Length * Standard & special custom length
- PCB Layout * 1.27*2.54mm & 2.54mm*2.54mm
- Contacts *Twist pin contacts, high density interconnection, Becu, gold over nickel plating
- The thickness of Gold plating * ≥1.27micron
- TWIST PIN * Male contact, fitted to plug connector.
- Socket * Female contact, fitted to socket connector (also known as socket).
- Insulator* 20% GFPPS (20% glass filled polyphenylene sulfide)
- LCP * Liquid Crystal Polymer.
- Potting * Epoxy compound used as an encapsulant.
- Insert * Moulded insulation housing, separating each connection.
- Interfacial Seal * Fitted to socket connector only
- Shell *Connector metal body plated nickel or cadmium.
- Jackscrew *High or low profile, hexagonal socket or slotted head.
- Jackpot* Mates with jackscrew.
- Standard connector * Manufactured to the standard dimensions and specifications.
- Special connector * A standard connector modified to meet specific requirements.
- Custom made connector * Designed to meet specific customer requirements.
- D-sub PCB connector * widely apply for the different industry and application.
- D-sub Right Angle PCB connector * Board Right Angle connector and Condensed Board Right Angle connector.
- D-sub Straight PCB connector * Board Straight connector.
