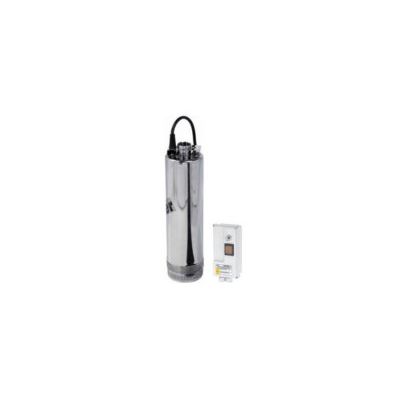

DAB DIVER - 5" Multistage Submersible Pump
5” multistage submersible pumps with outer casing in AISI 304 stainless steel; encapsulated stator fi lled with inert gas avoiding the inflation of the inner casing and damages to rotor and shaft. This technology ensures that the motor can always be repaired. Cooling of the pump is ensured by the pumped liquid.
Most popular related searches
multistage submersible pump
submersible pump
multistage pump
borehole submersible pump
submersible well pump
borehole well
well pumping
well pump
borehole
borehole pump
SPECIFICATIONS
- Max flow 12 m3/h, max head 100m
- For clean, non corrosive and non-abrasive liquids
- Max immersion depth 20m
- Max ambient temperature (liquid) 35°C
MATERIALS
- Pump body in AISI304
- Suction filter and impellers in technopolymer
- Shaft in stainless steel AISI304
- Double mechanical seal in oil bath
MOTOR DATA
- 2 pole, ΙΡ68, isolation class F
- Separate box with capacitor and thermal protection for the 1~ version
- 3~ version requires external therma protection
- Cable H07RN0F 10m
- Voltage 1~ 220-230V/50HZ or 3~ 380–400V/50Hz
- Single phase models also availabe with float
