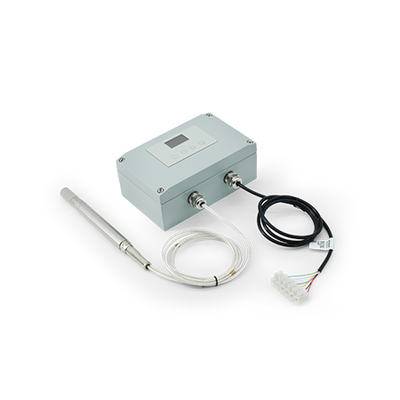

Dabeco - Model DB441 -High Temperature Dew Point Transmitter
This product is a temperature and humidity transmitter designed for high-temperature industrial applications, the transmitter adopts Swiss imported humidity measurement components, with accurate measurement, wide temperature range, stable operaation and long service life Temperature and humidity have two 4-20MA current signal outputs, with RS485 communication interface.
Split type:
- Installation: wall mounted
- Display mode: LED display
- Probe rod material: 304 (can be customized 316L)
- Probe length: 316L
- Fixing method: threaded, flange optional
- Probe rod length: standard 150mm (can be customized)
- Probe lead length: customizable up to 3m
- Pressure resistance (optional): maximum 6kg
This product is a temperature and humidity tra nsmitter designed for high-temperature industrial applications, the transmitter adopts Swiss imported humidity measurement components, with accurate measurement, wide temperature range, stable operation and long service life. Temperature and humidity have two 4-20MA current signal outputs, with RS485 communication interface.
UP TO 200°C Due to the high temperature tolerance of the chip, it can ensure that the product can work in a high temperature enviroment of 200℃ for a long time.
APPLICATION
Paper mills, pri nting and dyeing factories, textile factories, rubber factories, ceramic factories, sizing and drying, tunnel drying, high and low temperature test chambers, drying boxes, hydrogen fuel cells, steam pipelines and so on.
