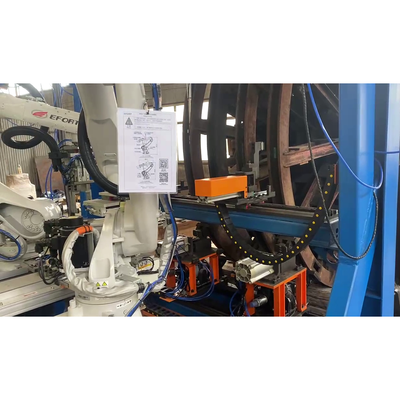

Dade - Automatic Guide Wheel Gripping and Assembly System

Multi-station liner management: Supports simultaneous storage and automatic feeding of multiple liners, enhancing assembly continuity.

Intelligent gripping & pressing: Utilizes robotic arms for precise liner gripping and automatic assembly, paired with a pressure system to ensure proper pressing. Built-in detection modules verify installation quality in real time.

Dynamic guide wheel control: Equipped with a brake-enabled rotation mechanism for precise wheel positioning, with anti-over-rotation design for safety.

Flexible Lateral Movement: Feeding, gripping, and pressing components feature adjustable lateral movement to accommodate liner assembly for different wheel sets.

• Modular structure: Enables quick disassembly, assembly, and transportation for easy on-site deployment and maintenance. Protective covers provide dustproof, moisture-proof, and corrosion-resistant properties, extending service life.
• Human-machine collaboration: Allows manual intervention for the first and last liner(s), compatible with temporary wire rope disengagement for flexible adaptation to complex scenarios.
• Compliant & reliable: Fully complies with the Coal Mine Safety Regulations. Critical components are labeled with manufacturer and model details, and spare parts for wear-prone components are included to ensure long-term stable operation.
