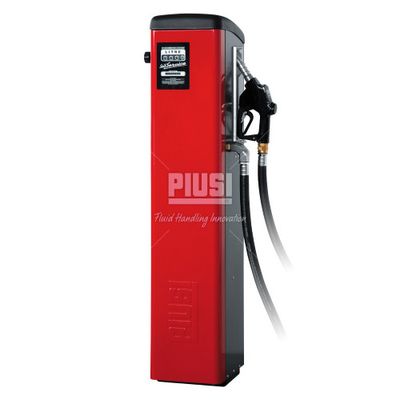

Dado - Model K44 -Self Service Dispenser
FromDado Tank srl
A complete range of fuel dispensers for non commercial use. Sturdy structure fitted with front door for easy maintenance operations. High capacity vane pump. Inbuilt bypass. Automatic nozzle with swivel connection. Inbuilt water absorption filter (or on request according to model) to ensure that dispensed product is free of impurities. Nutating-disk displacement flow metre with mechanical readout system.
Most popular related searches
self-priming motor pump
rotary vane pump
underground tank
water filter
self-priming pump
flow calibration
Available in two versions:
- SELF SERVICE 100 K44: 90 lt/min. 230 v.
- SELF SERVICE 70 K44 : 70 lt/min.’ 230 v.
- AC motor, available both as single-phase (230V – 50Hz)
- Self-priming vane motor pump, flow rate: 70 lpm (SS7044) or 90 lpm (SS10044)
- Nutating-disk fuel meter, designed for non-commercial use only, mechanical readout device with rotating wheels, 4-digits subtotal can be set to zero and progressive 7-digits totaliser.
- Accuracy +/- 1% of the flow range after calibration. Repeatability 0,2%, max operating pressure 10 bar.
- PULSER meter version available on request; pulser meter, oval gears type to connect the dispenser with a fuel management systems to control and monitor the fuelling operations and the fuel consumption.
- Water adsorbing filter
- Hinged front door complete with lock.
