DAE Miramar - Model L430 - Submersible Slurry Pump - 3 Inch / 247 GPM / 5 HP
From Dewatering Pumps - Submersible Pumps - Submersible Slurry Pumps
The DAE Pumps Miramar L430 Submersible Slurry Pumps are designed for an extensive range of applications. Their robust design provides the performance, reliability, and ease of use you need. DAE Pumps Miramar L430 pumps are built to move abrasive materials with solids up to 0.8-inches. With a 3-inch discharge, these slurry pumps process material at 247 GPM up to 47-feet via a 5 HP motor. This 60Hz pump is available in 460V.
Product Details
The Miramar L430 pumps are made to perform. The unique sealing system and modular design make them the most flexible pumps on the market. The wide base is designed for stability while standing in thick material. Easy to use and maintain, these pumps provide the optimum maintenance solution and can be easily fitted at the job site.
These heavy-duty submersible pumps offer a motor protection system with a built-in starter and optional automatic level control. The hardened high-chrome impellers and adjustable wear-resistant rubber diffuser feature ensure durability in the toughest environments.
The Miramar L430 is part of the Miramar Series of submersible slurry pumps which offer a variety of sizes, flow rates, speeds, and more to match your needs.
Features
- Water density up to 14.18 lb/gal
- Topside discharge
- Solid handling 0.8-inches
- pH values from 2 to 10
- Efficient electric motor with insulation class H with PTC and Clicson thermal protection
- High-quality cable sealing to ensure protection against water leakage
- Heavy-duty bearings to withstand shocks and overloads
- Reinforced double silicon carbide mechanical seal for duty applications
- Unique aluminum alloy offers the perfect combination of strength, light-weight, and corrosion resistance
- High-chrome impellers provide higher wear resistance
- A wide base ensures stability while enabling the passage of large solids
Specifications
- Discharge Size: 3″
- Max Volume: 247 GPM
- Max Head: 47 ft
- Rated Output: 5 HP
- Max Power Input: 6 kW
- Solids Handling: 0.8″
Dewatering Applications
Your dewatering needs are our top priority. Our electrical submersible pumps support all your dewatering application needs for drainage, slurry, and sludge. Visit our dewatering applications section to learn more about various types of dewatering needs.
These applications call for pumps designed specifically for handling corrosive and abrasive materials and their solid contents.
The non-clogging Miramar L430 Submersible Slurry Pumps are the toughest and have the largest apertures to facilitate the handling of slurry with the most challenging solids. The high-efficiency high chrome agitator lifts settled solids up to 0.8-inch with the ability to move up to 247 GPM. The robust design uses heavy-duty bearings to withstand shocks and overloads and a double silicon carbide mechanical seal for duty application.
Applications: abrasive media with high solids content, quarries, dredging, and settling ponds
Accessories:

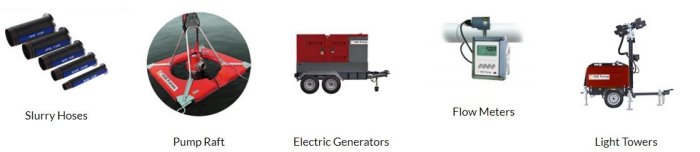

Get turnkey solutions that include dredge hoses, slurry flow meters, power units, and more. Choose from multiple sizes of slurry hoses for the transferring of materials, wireless flow meters for measuring the flow rate in gallons per minute of liquid, and power units for operation. Parts are always in stock and available for immediate shipping to anywhere in the US and the world.
