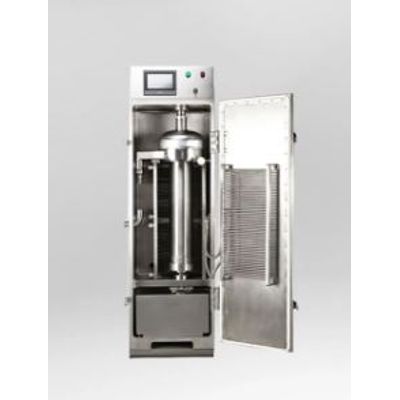

DAEMC - Model WS 61 -High Speed Tubular Centrifuge for Continuous Separation
The WS 61 high speed centrifuge is engineered for the continuous and efficient separation of biological and pharmaceutical mixtures on a pilot scale. Primarily utilized to separate minute particles from fermenter suspensions, it operates as a high-speed tubular centrifuge capable of processing volumes significantly exceeding the rotor's own capacity. The centrifuge achieves separation by stratifying suspension components in the rotor based on density differences, with heavier liquids forming an outer ring and lighter ones forming an inner ring. Solid residues adhere to the bowl's wall and are manually retrieved post operation. This centrifuge is notably effective in continuous extraction and purification, particularly within biochemicals and edible oils industries, adhering to GMP design standards for safety and efficacy.
The WS61 high speed centrifuge is a continuous centrifuge designed for the rapid and efficient separation of biological and pharmaceutical mixtures on a pilot scale.
High speed tubular centrifuges are mainly used to separate smallest particles from fermenter suspensions.
WS61 flow centrifuges are characterized by the ability to process a volume many times higher than the volume of the rotor. Choosing the right centrifuge for a given application depends on the volume of the substance being processed and its properties.
The components of the suspension are stratified in the rotor according to their density. Heavy liquid forms outer ring and light liquid forms inner ring. While the liquid is continuously discharged via the discharge trays,the little solid is settled on the wall of the bowl and is harvested manually after the machine stops.
WS61 high speed centrifuge is popular used for continuous extraction, purification in the fields of Biochemicals, Edible oil. GMP compliant design.
- European-made components.
- GMP compliant design and documentation.
- Affordable and reliable.
- Easy to maintance.
Suitable for the following usage scenarios
- Harvesting biomass
- Clarifying process liquids
- Separating edible oil, VCO virgin coconut oil.
- Fractionation of human blood.
- Animal blood processing.
- Bioremediation
- Separation of Lithium Chloride solution etc.
- Cheap to operate, do not require replacement of expensive membranes or other elements
- Consistent performance.
- Range of models facilitate scale-up.
- Simple to set up, use and clean for minimal down-time between separations.
- No replacement membranes or costly disposables.
- Small footprint saves space.
- For mixtures with very high solid concentrations, drum centrifuges can be supplied.
- Permanently-lubricated SKF bearings maintain long service life.
