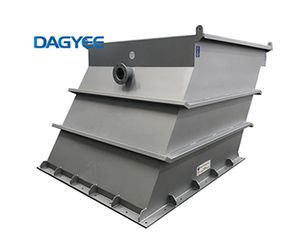

Dajiang - Model DCL -High Capacity Inclined Plate Settlers Within Coagulation Flocculation WWTP Waste Water Treatment
Lamella clarifiers are capable of managing feed water with high concentration of suspended solids. Separation results will vary depending on the feed water quality and types of contaminants. The feed water enters the lamella clarifier through the inlet channel on the top and flows to the bottom of the separator. The water is led back to the top, on its way the water flows through the lamellas, onto which the solid particles settle. Treated water flows to the top and reaches the outlet by passing a weir. The sludge slides down the lamellas and is collected in the sludge funnel. A rabble rake can be installed to prevent caking of the sludge in the conical hopper. The sludge is exported at intervals.
Lamella Separator Description
The format of the inclined plate sedimentation water purifier is to install a 60° inclined pipe above the sludge suspension layer. By adding flocculant to the sludge, the suspended solids or flocculent alum flowers accumulate into thin sludge, and then under the inclined pipe In the superficial area, the sludge suspension layer slides back to rely on gravity, and then settles into the sludge collection hopper, and is discharged into the sludge tank through the sludge pipe for separate treatment or comprehensive utilization. The supernatant gradually rises to the collection pipe for discharge or reuse.
Available Options
Flash mixing/flocculation tank with agitator
Full glass steel or stainless steel structure
Concrete tank design
Special coatings and plates
Integrated mechanical sludge thickener
Overhaul platforms and ladders
In-house laboratory analysis to optimize equipment
Drinking water design
Gasket and removable cover
Automatic desilting
Instrumentation and control
Chemical feed equipment
Sludge treatment and dewatering
Pilot size units for field testing
Lamella Separator Model
DLC-I Gravity Lamella ,V shape mud bucket, simple structure, no energy consumption.
DLC-II Lamella with scraper,Increase the mechanical transmission mechanism, the mud discharge is better and smoother, and it matches the unit with large processing capacity.
DLC-III Super hydraulic Lamella,Reduced footprint, efficient sedimentation, detachable transportation.
Lamella Separator Advantages
Flash mix/flocculation tanks with mixers
Full stainless steel construction
Concrete tank designs for large flows
Special coatings and plate materials available
Integral mechanical sludge thickener
Access platform and ladder
Gasketed and removable covers
Automatic desludging
Instrumentation and controls
Chemical feed equipment
Sludge handling and dewatering
Lamella Separator Applications
Potable water clarification
Industrial process water
Sand filter backwash
Metal finishing
Mining
Groundwater
River pre-sedimentation
