Lamella clarifier inclined plate settler (IPS) a type of settler designed to remove particulates from liquids.They often employed in primary water treatment in place of conventional settling tanks. used in industrial water treatment. inclined plates provide a large effective settling area for a small footprint. The inlet stream is stilled upon entry into the clarifier. Solid particles begin to settle on the plates and begin to accumulate in collection hoppers at the bottom of the clarifier unit. Sludge drawn off at the bottom of the hoppers and the clarified liquid exits the unit at the top over weir. ADVANTAGES Durable stainless steel construction: • Optimised solids settling using stainless steel plates with a smooth mill finish, ensuring no plate clogging or sludge build-up. • Low maintenance; only a hose down required. • Minimisation of thermal current and wind effects on settled water quality.
Lamella Separator Description
Lamella clarifier inclined plate settler (IPS) a type of settler designed to remove particulates from liquids.
They often employed in primary water treatment in place of conventional settling tanks.
Used in industrial water treatment. inclined plates provide a large effective settling area for a small footprint.
The inlet stream is stilled upon entry into the clarifier. Solid particles begin to settle on the plates and begin to accumulate in collection hoppers at the bottom of the clarifier unit.
Sludge drawn off at the bottom of the hoppers and the clarified liquid exits the unit at the top over weir.
Available Options
Continuous operation.
Due to its small volume no need to allocate large storage when emptying.
No drive nor mechanical parts.
Filling and emptying time is short.
Small floor area footprint.
Modular design for future expansions.

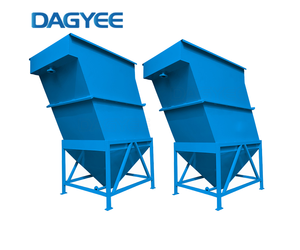

Lamella Separator Model
DLC-I Gravity Lamella ,V shape mud bucket, simple structure, no energy consumption.
DLC-II Lamella with scraper,Increase the mechanical transmission mechanism, the mud discharge is better and smoother, and it matches the unit with large processing capacity.
DLC-III Super hydraulic Lamella,Reduced footprint, efficient sedimentation, detachable transportation.
Lamella Separator Advantages
Structural steel support legs
Epoxy painted carbon steel tank
Individually removable FRP plates
Adjustable effluent weir plates
Standard units can be manufactured for flows from 5 gpm to 3000 gpm and above in a single above-grade tank
One-piece prefabricated units are available with up to 1000 sqft of effective settling area
Single tank construction with integral flash mix/flocculation compartments for smaller units
Multiple sample connection
Lamella Separator Applications
Primary clarification of wastewater streams
Backwash water recovery
Industrial water treatment systems
Potable water treatment systems
River water abstraction clarification
Wash water recovery and recirculation systems
Wet scrubber and slaking effluent treatment
