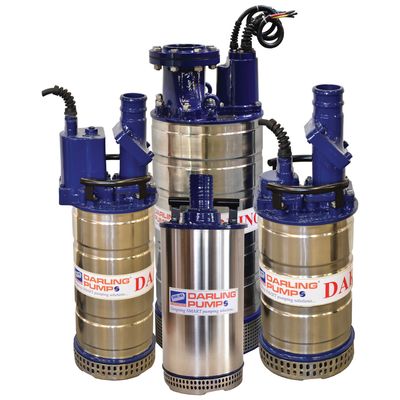

Darling - Model DS & DJ Series -Dewatering Pumps

FromDarling Pumps

SHARE

Dewatering is no more about removing excess water from one place or another, it has lot of other challenges like… dewatering sites are generally open to sky, prone to large amount of mud & debris & are often unmanned. Pumps need to be moved to multiple locations & thus need to be easily portable. Pumps movement, fitment & electrical connections are often done by unskilled laborer & thus pumps are prone to damage during its movement or faulty electrical connections. Many a times due to ignorance, omission or un foreseen emergency pumps are put in to operation directly on main supply without using control panel in between. Due to this, pumps are generally exposed to erratic power supply, whether used on electrical supply or supply through genset. Due to all these uncertainties site engineers have to live with frequent breakdown of pump sets due to dry running, single phasing or mechanical jamming.

Most popular related searches

contaminated water

site dewatering

dewatering pumping

dewatering pump

water contamination

construction site water

Rating : Up to 90 kW
Flow : Up to 500 m³ / hr
Head : Up to 88 m
Induction Motor : Dry Type
Degree of Protection : IP68
Speed : 2900 rpm (Sync. speed)
Power Supply/Frequency* : 3-Phase, AC - 415V / 50Hz
Starting : DOL / Star Delta

* Option of Other Voltage & Frequency is also available.

Basement Water Dewatering
Storm Water Dewatering
Pumping heavily contaminated water with Sand gravel and sludge at various construction sites.
Sea Water Pumping
Industrial Water Dewatering
Dam Sites & Deep Excavation
Micro Tunneling Projects
Underground Civil Projects

Inbuilt Controller – All DJC pumps between 3HP to 10HP are equipped with built-in protection against dry running, overload mechanical jamming etc.
Impeller – Wear Resistant SS Impeller with wide passages that can can pass solid up to 25mm.
Motor – Motor capable to withstand wide voltage fluctuations, Highly efficient dry motors with built-in protection against temperature rise.
Shaft – Extra heavy duty SS Shaft not expossed to pumpage liquid.
Efficiency Restoration System – Adjustable Neckring / Wear ring to restore efficiency.
Mechanical Seals – Dual mechanical seal, independent of discharge pressure, thus providing improved seal life.
Bearing – Heavy duty ball bearing used at top and bottom ends to balancer adverse load.
Seal -Guard Protection: Additional protection for Mechanical Seal by seal guard.
Cable Sealing – Special Leak proof cable sealing arrangement to avoid ingress of water through cable. No need to open motor for changing cable.
Moduler Design – Option of pump portion interchangability in given rating as per head/Flow requirement.
Cooling – Run-through cooling for better heat dissipation & low minimum submergence.
