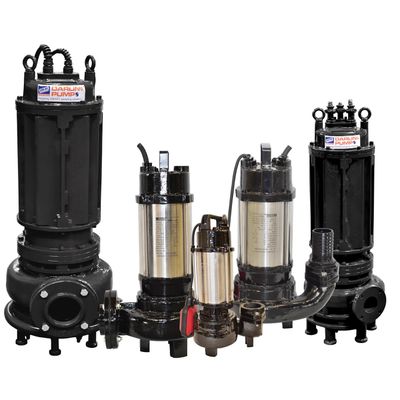

Darling - Model MW / WP Series -Waste Water Pumps
FromDarling Pumps
Darling MW- Series pumps are truly versatile pumps catering to all your pumping needs across the variety of segments. MW- Series pumps are not only sturdy & portable, but they come with high reliability quotient associated with Darling Pumps. Backed with experience of over four decades, Darling MW-Series pump is your one stop solution for all kind of water pumping, Clear Water to Drainage water, pump out everything on the go.Most popular related searches
water pump
sewage system
drainage water
drainage pumping
drainage pump
leak sealing
sewage
radial impeller
wet well
Rating : Up to 75 kW
Flow : Up to 125 m3/ hr
Head : Up to 88 m
Induction Motor : Dry Type
Degree of Protection : IP68
Speed : 2900 rpm (Sync. speed)
Power Supply/Frequency* : 3-Phase, AC - 415V / 50Hz
Starting : DOL / Star Delta
* Option of Other Voltage & Frequency is also available.
- Impeller -Choice of impeller-Vortex,Radial ,Channel to cater different kind of soilid handling applications.Suitable for handling solids from MM to 50 mm.
- Motor – Highly efficient dry as well as wet motors with built- in protections against temperature rise.motor capable to withstand wide voltage.
- Shaft – heavy duty Shaft to avoid feflection while pumping solids.
- Mechanical Seals -Mechanical seals fitted in independent chambers, not exposedto pumpage liquid and devoide of discharge pressure.
- Bearing– Heavy duty ball bearing used at top and bottom ends to balance adverse load.
- Cable Sealing – Special leak proof cable sealing arrangement,to avoid ingress of water through cable.no need to open motor for changing cable.cable.
- Float switch – Pumps up to 2HP can also be provided in single phase and with built -in Float arrangement.
- Car Parking areas
- Hotel & Hospitals.
- Pharmaceutical plants
- Treated water from ETP/STP
- Cable Trench pits
- Packeged Sewage system.
