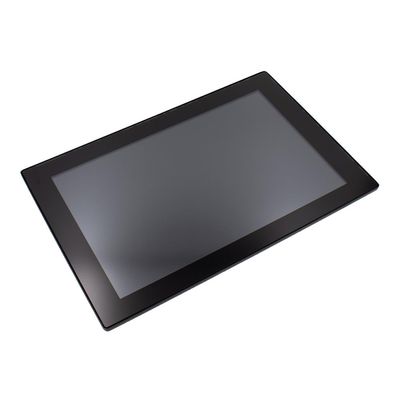

Dasa - Model dOP50C -Computers Mobile Machines
Computer for mobile applications (Windows 10) with Integrated 12.1" touchscreen. The Windows 10 based 12,1” touchscreen PC is designed towards the requirements and needs from professional forestry applications. It can therefore be utilized in a wide range of mobile working machines as well as in commercial vehicles when and where tough environmental demands are combined with high performance needs.
Most popular related searches
- AMD Quadcore processor and multiple connectivity interfaces
- Bright IPS-panel with excellent wide-angle visibility
- Ignition control with direct machine battery connection
- Ensures correct safe shutdown of computer when machine is turned off
- Wide range 10-30 VDC power supply
- Can be powered using for example a lighter plug in any car or truck, during servicing or operator assistance/training etc
- Low consumption when shut off (will not drain machine battery)
General:
- Weight: 2.5 kg (5.5 lbs)
- Ambient temperature: operating –30 to +70 °C (–22 to 157 °F) storage –40 to +85 °C (–40 to 185 °F)
- Protection class: IP30
- Voltage supply: 10 – 30 V DC
- Power supply: max 60 W
- Power consumption (type) (at 24 V DC and depending on connected equipment): 1 – 3 A
- Recommended fuse: 5A
- Size: 313 × 206 × 50 mm (12.3" × 8.1" × 2.0")
- Chassis construction: Aluminum, powder coated black
Display:
- Size: 12.1”
- Panel type: IPS
- Resolution 1280x800
- Brightness: 1000 cd/m²
- Contrast: 1:1000
- Touchscreen: Projecting capacitive multitouch (up to 5 points)
Computer:
- CPU: AMD Ryzen v1404i 4x2.0 GHz (3.6 GHz)
- Memory: 4 GB DDR4 2400 MHz
- Operating system: Windows 10 IoT Enterprise LTSC 2019
- Hard disc: 128 GB SATA III (6 Gbps) SSD (Solid State Drive) with Power Loss Protection
- Memory card: 8 GB MicroSD
- WiFi: 802.11ac/abgn (2,4 GHz max 18 dBm, 5 GHz max 16 dBm)
- Bluetooth: v4.1, v4.0 LE, v3.0+HS,v2.1+EDR (max 4 dBm)
- Antenna: Built in MIMO
- Speakers: Built in Stereo (2x2W)
Connectors:
- Power: M12 Power + Ignition Control + Status output
- CAN: M 12 1 × Galvanically separated 1 × Not galvanically separated
- Ethernet/LAN: 2 × M12, 2 separate LAN
- Display: 2 × DVI-D
- AUX: Molex Micro-Fit 3.0 1 × COM RS232 (Rx/Tx only) Line in, Line out
- USB: 8 × USB 2.0
