EMC - Model CEM -Data Acquisition System
Station Manager® data loggers can be polled with a variety of polling protocols. These include the standard EMC System Manager® polling protocol and protocols used by other data logger manufactures. Polling can be performed through standard dial-up modems, lease-line modems, radio modems, through the Internet, or on a customer`s LAN/WAN network using TCP-IP / Ethernet.
Most popular related searches
EPA 40 CFR part 75
EPA 40 CFR part 60
data logger
data acquisition system
EPA 40 CFR
CEMS data
radio modem
SCADA system
industrial PC
SCADA data
- Integrated CEM Data Logger, Data Handling System, and Reporting System
- Intuitive User Interlace
- Data Reporting - 40 CFR Part 60 and 40 CFR Part 75
- Allen-Bradley PLC, Automation Direct PLC, Modicon PLC, or Advantech SIU
- Modbus "Master" and "Slave" Interfaces to Plant DCS and SCADA Systems
- Data Inputs from Wonderware, Microsoft SQL Server, or Oracle databases
- Strip Charts and Trend Recording
- Timer - Controller Program
- Calibration Control - Logbook - Inventory - Alarms
- Data Export to Microsoft Excel Spreadsheets
- Microsoft Windows 2000
- Voice Alarm Message
- E-Mail Alarm and Report Program
- Real-Time Data Display

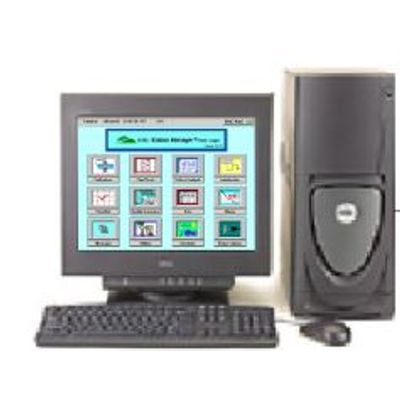

- Station Manager PC: Low Cost Dell. Gateway. IBM. or HP PC, or Industrial Rack-Mount PC.
- PC Specifications: 2.0 GHz Celeron, 128 MB RAM, 40 GB Drive, CD-ROM, 15` Monitor, Microsoft Windows 2000
- Hardware I/O Devices: PLCs, Advantech "ADAM" Signal Interface Units (SlUs), and Direct Serial Interface to Analyzers
- PLCs Supported: Allen-Bradley, Automation Direct, Modicon, and other PLCs
- PLC Interlace: RS-232C and Ethernet (TCP-IP)
- ADAM SIU Interlace: RS-232C. RS-485C, or Ethernet (TCP-IP)
- ADAM 4-Slot SIU Dimensions: 9.3" L x 4.3" W x 2.9" H (231 mm x 110mm x 75mm), 1.7 lbs (3.7 kg)
- ADAM 8-Slot SIU Dimensions: 13.9" L x 4.3" W x 2.9" H (355mm x 110mm x 75mm), 2.6 lbs (5.7 kg)
- Analyzer Interface: Voltage, Current Loop, and RS-232C
- Analog Signal Resolution: 16-Bit Analog to Digital (A/D) Converter
- Analog Inputs: 8. 16, 24. or 32 Differential Analog Inputs (Voltage: 0-1, 0-5, 0-10 vdc Current: 0-20 ma or 4-20 ma)
- Digital Inputs: 8, 16, 24, or 32 Optically Isolated Digital Inputs
- Relay Outputs: 8, 16, 24, or 32 Relay Outputs
