Climatronics - Model IMP-865 -Data Acquisition System

Direct sensor interface including the supply of three precision excitation voltages is possible with the IMP-865. The input signals are processed by a custom application program that is factory supplied and may be modified by the user. The standard internal battery-backed SRAM memory stores 500,000 data points and the application program. A 4 Mbyte memory option provides a storage capacity of 2,000.000 data point. A removable solid-state storage module or CompactFlash® memory is also available to further increase storage capacity, transport data and/or download a new application program.

Programming of the IMP-865 is easily done with a PC and the support software or an optional, portable keyboard/display unit. A comprehensive on board instruction set is included, which can be programmed to perform calculations on any desired channel including interactions between channels.

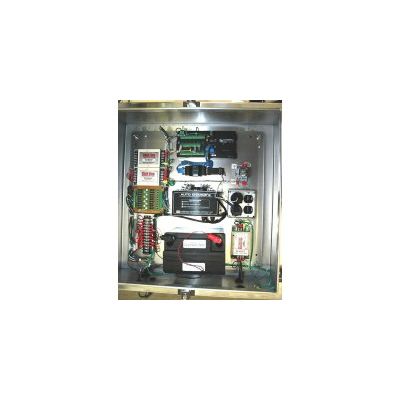

The basic IMP-865 (P/N 102654-G0-H0) consists of a P/N 102655 data logger mounted in a 16 x 14 x 6 inch, NEMA-4X enclosure. The G1 option provides an enclosure size of 18 x 16x8 inches and the G2 option is 24 x 24 x 8 inches. The H1 option adds 2 Mbyte of internal memory. A rack mountable version of the IMP-865 is also available (P/N 102658-G0-H0) which uses only 5-1/4 x 19 inches of panel space.

The IMP-865 requires a 12-volt DC power source such as our P/N 101139 battery backup power supply. When battery backup is not required, our P/N 100519 power supply is provided.

A large selection of communications, storage, measurement and control peripherals are available. Contact Climatronics for a system quotation based on your specific requirements.

• Direct Sensor Inputs
• Control Outputs
• Internal/External Solid-State Storage
• Phone/Dedicated Line or Radio Telemetry
• Low Power
• Built-in Surge Protection
• MODBUS interface
