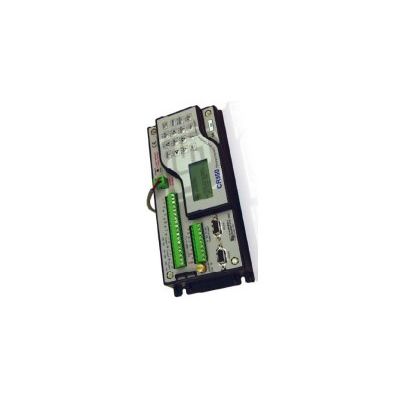

Climatronics - Model IMP-900/950 -Data Acquisition System

Direct sensor interface including the supply of excitation voltages is possible with the IMP-900/950. The input signals will then be processed as required. Data is stored in the 2 Mbyte battery-backed SRAM internal memory, and/or a removable solid-state storage module, or a remote computer for later processing. The solid-state storage module can be used to transport and download a new operating program.

User programming is easily accomplished with a PC-compatible computer and the logger support software. An optional, portable keyboard/display unit (CCR1000KD) or the built-in keyboard/display of the IMP-950 can also be used to program the system and view data. A comprehensive on-board instruction set is included which can be programmed to perform calculations on any desired channel including interactions between channels. A custom operating program is factory supplied and can be modified by the user.

The basic IMP-900/950 consists of either data logger mounted in a 16 x 14 x 6 inch, NEMA-4X enclosure with 2 Mbytes of internal memory capable of storing up to 1.000,000 final data points. The G1 option provides an enclosure size of 18 x 16 x 8 inches and the G2 option is 24 x 24 x 8 inches. A rack mountable version of the IMP-900/950 is also available which uses only 5-1/4 x 19 inches of panel space.

The IMP-900/950 requires a 12-volt DC power source such as the 8AH battery backup power supply (P/N 101139). When battery backup is not required, our P/N 100519 power supply is provided.

A large selection of communications, storage, measurement and control peripherals are available. Please contact Climatronics for a system quotation based on your specific requirements.

• Direct Sensor Inputs
• Control Outputs
• 2 Mbytes of Battery-Backed SRAM
• Phone/Dedicated Line or Radio Telemetry
• Optional Built-in Keyboard and Display
• Built-in Surge Protection
• MODBUS interface
