Jauntering - Model HL20-A -Data Acquisition System
HL20-A data acquisition system is a powerful data acquisition system suitable for various applications including meteorology, hydrology, ambient air pollution, agriculture, industry, wind and solar power energy, water quality & resource, ground water, soil erosion research, debris flow, geotechnical measurement, etc. Due to its high data capacity ( data storage capacity of EEDSU unit is > 350,000,000 data points ), which is helpful for site where has no telecommunication link or frequent data retrieval on-site is difficult or long term data storage is required.

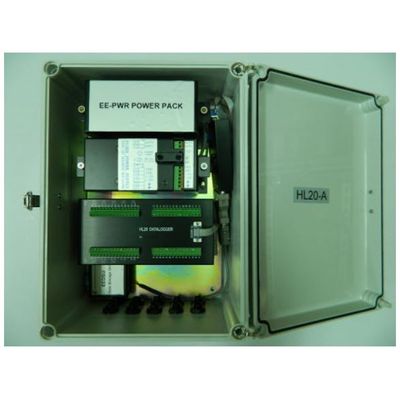

The HL20-A data acquisition system consists of a HL20 datalogger, P12RB AC/DC power supply plus a power pack, a RS232 converter interface, EEDSU data storage unit and an ISO 9001 environmental Enclosure, etc. The HL20 datalogger can provide excitation voltage outputs for sensors while scanning, which absolutely save power consumption and keep system running more longer at sites where have no AC power sources. The data either be stored in internal storage can be directly retrieved by PC through a PC cable, or a removable SD card ( in EEDSU data storage unit ) which can be read on site by a notebook PC or brought back to office and read by a desktop PC.
User programming of HL20 is easily accomplished through an IBM compatible PC with catalogger support software. The wiring diagram and comprehensive on board instruction table as program example are included, which can be programmed to perform calculations on any desired channel. Also, the offered program example can be modified easily through datalogger support software.
- 20 single-ended or 8 differential analog input channels, expandable to more man 200 input
- channels with multiple CEM416A channel expansion modules
- 4 excitation voltage outputs
- External type of 2 switched 12 VDC output unit (Option)
- 4 pulse input channels
- 6 digital control outputs
- Optional EEDSU data storage unit (>3 50,000,000 data points)
- High flexibility for various types of sensors
- Low power consumption
