MadgeTech - Model ETR101A -Data Logger

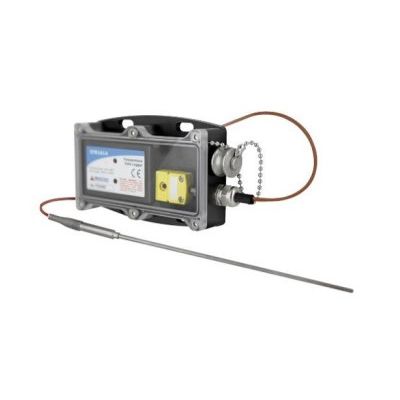

The ETR101A kit comes assembled and includes a data logger (TC101A-MP), temperature sensor (thermocouple type K), water resistant enclosure, interface cable (IFC200), hex screwdriver and software. The ETR101A is a complete Exhaust Temperature Profiling Kit designed to profile the exhaust temperature of on-road vehicles and off-road equipment, including tractor trailers, buses, trucks over 14,000 lb, waste water vehicles, and sweepers. The ETR101A kit comes assembled and includes a data logger, temperature sensor (thermocouple type K), weatherproof enclosure, USB data logger interface cable (IFC200), hex screwdriver and software.
Setup is fast and easy. The data logger, which is contained within the water resistant enclosure, is mounted to the vehicle. Using the MadgeTech software, the logger is programmed to record for a set period, generally three to five days. Data is stored in the data logger, and is downloadable at any time via a pc or laptop computer. The complete temperature profile is then provided to the diesel particulate filter (DPF) manufacturer, aiding in the selection of the correct DPF for the exhaust system. Many DPF manufacturers, including Donaldson Corp., recommend the use of temperature profiling equipment, such as the MadgeTech ETR101A, to aid in the selection of the appropriate diesel particulate filter.
Temperature
- Temperature Sensor: Semiconductor
- Temperature Range: -40 °C to +80 °C (-40 °F to +176 °F)
- Temperature Resolution: 0.1 °C (0.18 °F)
- Temperature Calibrated Accuracy: ±0.25 °C (±0.45 °F)
- Remote Channel Temperature Sensor: Thermocouple Type K
- Remote Channel Temperature Range: -260 °C to +899 °C (-436 °F to +1650.2 °F)
- Remote Channel Temperature Resolution: 0.1 °C (0.18 °F)
- Remote Channel Temperature Calibrated Accuracy: ±0.5 °C
General
- Memory: 500,000 readings per channel;
- software configurable memory wrap
- 250,000 readings in multiple start/stop mode
- Reading Rate: 1 reading every second up to 1 reading every 24 hours
- Baud Rate: 115,200
- Cold Junction Compensation: Automatic
- Channels: 1 Internal & 1 Remote
- LED Indicators: Red and Green
- Push-Button Start: Yes
- Battery Life: 10 years typical, dependent upon frequency and duty cycle
- Material: ABS plastic
- Dimensions: 1.4 in x 2.2 in x 0.6 in (36 mm x 56 mm x 16 mm)
- Operating Environment: -20 °C to 80 °C (-4 °F to +176 °F), 0 %RH to 100 %RH
- Required Interface Package: IFC200
