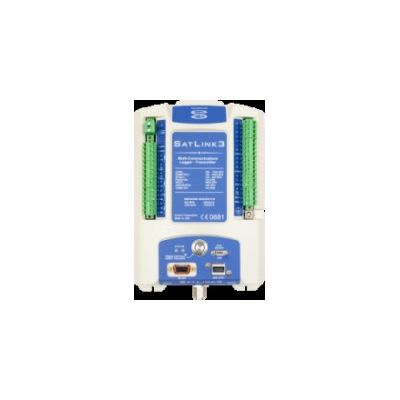

Sutron SatLink - Model 3 -Data Logger
SatLink3 is data logger with a built-in satellite transmitter that is especially designed for hydrometry, meteorology and environment monitoring.
The SatLink3 (SL3) provides a cost-effective way to measure, log, calculate, and transmit data from remote locations around the world. The unit monitors 32 independent measurements of most hydrological, meterological, environmental, or related sensors. SL3 has built in support for all CGMS satellites including GOES, Eumetsat, Insat, and MTSAT for operation anywhere. Most often used directly connected to sensors and transmitting data on a user-set schedule, the SatLink3 has options for cellular and Iridium communications.
Satlink3 builds upon Sutron`s 30 years` experience providing reliable satellite communications. Satlink3 does everything Satlink2 did with the following enhancements:
- Expanded measurements from 16 to 32
- Improved analog accuracy and additional analog channels
- Expanded SDI capacity with 2 independent SDI-12 inputs
- Optional cell/Iridium modems to redundant
GENERAL INFORMATION
Size 6.06 in. x 9.24 in. x 2 in.
Weight 3.1 lbs (1.42kg)
IP rating IP63
Operating Temperature -40° C to +70° C
POWER REQUIREMENTS
Voltage 9-20 VDC, , 1.5A transmitting with 1.25W TX power
Quiescent Measuring < 2 mA typ @12.5 VDC
SDI-12
Independent channels 2
Compliance V1.3 logger
Power 500mA max
ANALOG – SINGLE ENDED
Number of inputs 2
Range 0-5V
Accuracy @ 25°C 0.004% typ
Resolution 0.298 μV
ANALOG – DIFFERENTIAL
Number of Inputs 3
Range ± 39mV, ± 312mV, ± 2.5V
Accuracy @ 25°C 0.004% typ
Resolution 0.298 μV @ ± 2.5V scale
ANALOG – 4-20ma
Number of inputs 1
Range 0-22mA
Accuracy @ 25°C 0.02%
Load Internal 200Ω
DIGITAL – Inputs/Outputs
Number of inputs 2, 0-15 V, optional low level input
Input type Status, counter, frequency
Input voltage 0-5VDC, internal pull
Max input frequency 10KHz, optional debouncing
Number of outputs 2
Output types On/off/pulse
Open collector w/100 ohm limiting resistor. 100mA, 15V max
OTHER I/Os & CONNECTIONS
Precision analog reference 2.5V
10.0 mA
Switch 12V 1.0 A (2 available)
Protected 12V 1.0 A
RS485
Internal SPI expansion
GPS INPUT SMA-F
RS232 DB9
USB (OTG) USB MICRO AB
USB Host Type A
microSD Internal up to 32 GB
RF POWER OUTPUT
RF output power 1.25-14 Watts depending on settings
NOTE: In humid/hostile environments we RECOMMEND installing SatLink in a NEMA 4 enclosure. Sutron also recommends adding a lightning protection module such as the Sutron 6461-1240 for remote systems.
