Data Physics - Model LE-2016-3 -Water Cooled Shaker
FromData Physics

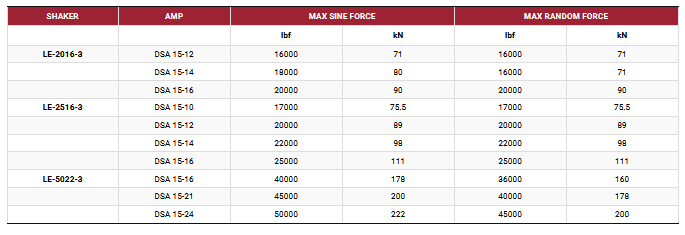

Force outputs from 16,000 lbf (71 kN) to 20,000 lbf (90 kN).
Most popular related searches
- Peak sine force: 16000 – 20000 lbf (71 – 90 kN)
- Random force rms: 16,000 lbf (71 – 90 kN)
- Velocity peak: 79 ips (2 m/sec)
- Peak to peak displacement: 3 in. (76.2 mm)
- Armature diameter: 17.3 in. (440 mm)
- Dual hydrostatic bearings
- Superior axial and torsional stability
- Automatic load support and armature centering
- Payload support up to 2000 lbs (909 kg)
- High force systems include chillers
- Custom designed head expanders utilizing 3-D modeling and FEA analysis for maximum performance
- Rigid trunnions available
for VH configured systems - Isolated trunnions (VH)
with Lin-E-Air isolation - Monobase with slip tables
- Air glides and guidance systems
- Metric and imperial
table threads
