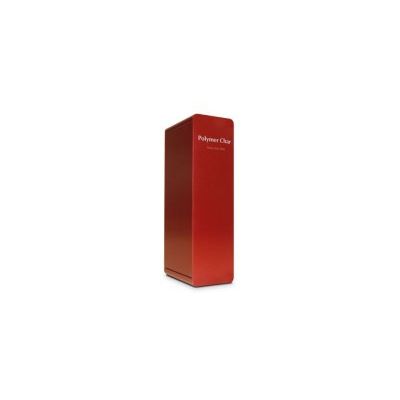

Polymer Char - Model 200 -Data Unit

This device can be configured with 4 or 8 independent analog input channels and used to collect data from up to 4 different instruments. Furthermore, if more analog channels are needed, another unit can be added and controlled by the same computer thanks to the control and acquisition software, provided together with the Data Unit 200.

Maximum resolution is provided with 24 bits and noise level is outstanding thanks to its totally independent and isolated analog channels. These features combined with a maximum flexibility in its configurations turn this device into a transparent gateway for the user to reach directly the analysis results. Accordingly, the acquisition step is not necessary.

Connection to the computer is provided in different formats like USB or LAN Ethernet 802.3 and also by Wi-Fi, simplifying the connection and placement in the laboratory.

• Computer interface: Wi-Fi, USB or LAN Ethernet 802.3.
• Analog channels: 4 or 8 channels configurations available.
• Resolution: 24 bits.
• Inputs range selectable by software: ±2.5V, ±10V.
• 4 DO, 4 DI.
• Up to four instruments can be controlled by the same module.
• Up to two Data units can be controlled by the same computer.
• Dimensions: 45 x 65 x 160 mm.
