Cangzhou Datang Steel Pipe Co., Ltd

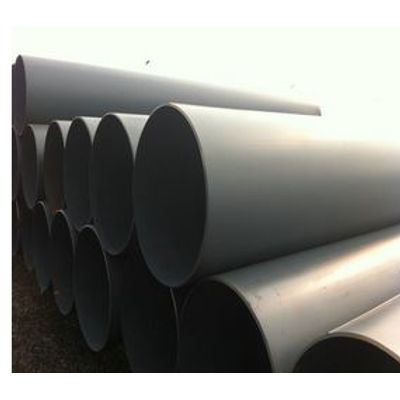

DatangModel LSAW -Steel Pipe

SHARE

The LSAW steel pipe is the steel pipe whose weld seam is parallel to the longitudinal direction of the steel pipe. Usually divided into ERW steel pipe, electric welded thin wall pipe, transformer cooling tubing and so on. Direct seam welded pipe production process is simple, high production efficiency, low cost, rapid development. The strength of spiral welded pipe is generally higher than that of straight welded pipe. The welded pipe with larger diameter can be produced with narrow blank, and the welded pipe with different diameter can also be produced with the same width of blank. However, compared with the same length of straight seam pipe, the weld length increases by 30-100%, and the production speed is lower.

Most popular related searches
  • Product Name  LSAW Steel Pipe.
  • Usage  Used for low pressure liquid delivery, such as water, gas, and oil.
  • Process  LSAW - UO (UOE), RB (RBE), JCO (JCOE).
  • DSAW - Double Submerged arc welded.
  • Standard  API 5L, API 5CT, ASTM 53, EN 10217, DIN 2458. IS 3589, GB/T 3091, GB/T 9711.
  • Certificate  API 5L PSL1, PSL2, API 5CT.
  • Out Diameter  355.6mm - 1626mm.
  • Wall Thickness  8 - 50mm.
  • Length  up to 12m.
  • Steel Grade
  • API 5L PSL1 / PSL2  GR B, X42, X46, X52, X56, X60, X65, X70, X80.
  • ASTM A53  GR A, GR B, GR C.
  • EN  With Hydraulic Testing, Eddy Current, Infrared Test.
  • GB  Q195, Q215, Q235, Q345, L175, L210, L245, L320, L360 - L555.
  • Surface  Fusion bond Epoxy coating, Coal Tar Epoxy, 3PE, Vanish Coating, Bitumen Coating, Black Oil coating as per customer`s requirement.
  • Test  Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, X-ray Test.
  • Mill Test Certificate  EN 10204/3.1B.
