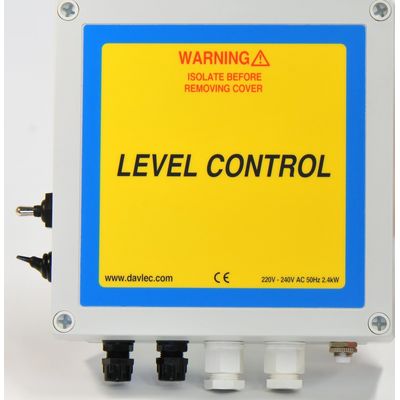

Davlec - Liquid Level Control Unit

• Two modes of operation - either top/bottom probe automatic or two probe/float milk pump timer.
• Adjustable milk pump delay (1 to 100 seconds) when using 2 probes or float mode.
• Adjustable plate cooler water valve delay (0 to 50 seconds).
• Adjustable probe sensitivity to prevent milk froth false triggering.
• 10 Amp thermal overload trip for milk pump.
• Mains voltage contactor configured to single phase but can be used for three phase*.
• Manual switch operates milk pump and plate cooler continuously.

*Three phase maximum load is 3hp (2.2KW), additional protection will be required.
