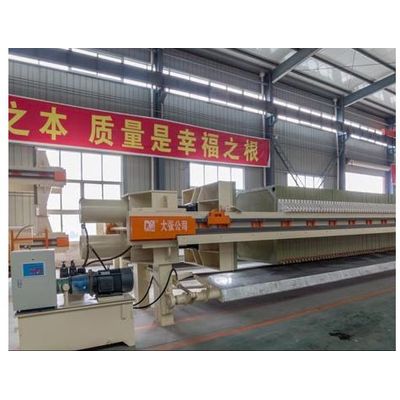

Dazhang - Automatic Program Controlled Efficiency Filter Press

FromShanghai Dazhang Filtrate Equipment Co.,Ltd.

SHARE

Full-automatic Program Controlled High Efficiency Filter Press controlled by the microcomputer controller, PLC and touchscreen controller. It also has remote control interface and could achieve the automatic remote control operation. It is widely used for different industries because of the features compact structure, stable performance, high efficiency and low cost. It is widely used in industries, such as petrochemical, metallurgy(gold mine, silver mine, copper mine, iron mine, zinc ore rare earth, etc), grease(light oil, glycerin, machine oil, vegetable oil, etc), ceramics(bentonite, active earth, porcelain clay, etc)

Most popular related searches

filter press control

pressure filter

sludge concentration

mining equipment

automatic cutting machine

Compact design. The concentration and dehydration is integrated.
Reduce the dehydration machine installation area.Low construction costs.
Sludge concentrating function.
Self-cleaning function.
Low-speed helical extrusion technology. Low power consumption.
24-hour automatic continuous unmanned operation. Low cost of workers.

Full-automatic Program Controlled High Efficiency Filter Press, adopts the sinopec or Yanshan petrochemical polypropylene as raw material, after high pressure hot melting through 4000T injection molding machine, using high-precision die casting. It has the features of strong compressive strength, high sealing and high mechanical strength.
The main frame adopts the Q345B, which is automatically cut by CNC cutting machine. It is designed in box welding construction and is processed by automatic submerged arc welding technique. The weld is smooth and beautiful. It has the advantage of corrosion resistance, high tensile strength and good impact resistance. After the overpressure test, safety factor is 2.2 times and could meet the requirements of high pressure filter plate to ensure its safety and stability, and completely solved the problem of main beam deformation of filter press.
Use ABB converter, built-in chain, pulling plate and slider all are all have been added with protective device, and the upper and lower chain boxes. are closed, all these ensure the cleanliness and flexibility of plate pulling system.
