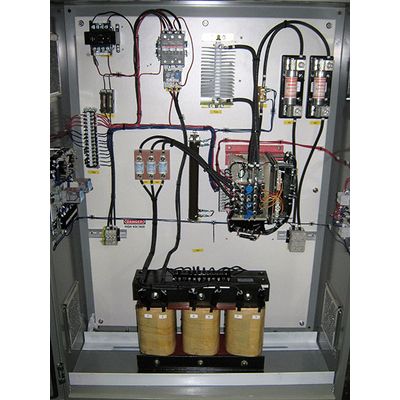

Ohio Magnetics - DC Power Rectifiers for Lifting Magnets

SHARE
Ohio Magnetics specializes in providing versatile DC power rectifiers designed to efficiently power lifting magnets. Their solutions cater to a range of applications with both fixed and variable voltage outputs. Fixed voltage outputs, most commonly at 230 VDC or 115 VDC, are suited for general magnet applications, ensuring reliable and consistent performance. Meanwhile, variable voltage outputs, typically ranging from 0-230 VDC to 0-300 VDC, offer advanced functionality for specialized applications such as fanning, boost/carry operations, flux reduction, and constant flux regulation. Ohio Magnetics' DC power supplies are engineered to meet rigorous technical standards, accommodating various optional features to enhance operational flexibility and performance. Made in the USA, these rectifiers are built to support industrial environments and are backed by Ohio Magnetics' commitment to quality.
Most popular related searches
lifting magnet
wall mounted enclosure
built environment

Ohio Magnetics’ DC Power Supplies for lifting magnets are available in both a fixed voltage output (usually 230 VDC or 115 VDC) and a variable voltage output (usually 0-230 VDC or 0-300 VDC). Fixed voltage output type DC Power Supplies are used in most general magnet applications. Variable voltage supplies are used in applications of fanning, boost/carry, flux reduction, constant flux regulation, etc.

  • North American or international input voltages; 3 phases; 50 or 60 Hz
  • Magnetic line starter with 3-phase overload relay protection
  • Option: Manual line starter with 3-phase overload protection (may be eliminated if controlled externally)
  • Adjustable taps on power transformers to match input line conditions
  • Fast acting fuse protection
  • Transient surge protection
  • AC power on indicator light (neon)
  • Wall mounted enclosures up to 10 KW, floor mounted enclosures above 10 KW
  • 110/120 V (North America) or 220/240 (international) control voltage for input switching and operation of accessories
  • Modular diodes/SCR for easy replacement
  • Separate 230 V supply for controllers on all variable voltage supplies
  • NEMA 4 or 12 standard enclosure natural convention

Optional Features

  • Circuit breakers disconnect (local or remote)
  • Variable voltage: – 0-230 V system for flux reduction, fanning, current/voltage regulation applications – 0-300 V systems for boost /carry, current/voltage regulation applications
  • Power relay for operation of controller lift/drop coil from 110/120 (North America) or 220/240 (international) via pendant control
  • Special requests available: please contact factory
    • NEMA 3R – IP32
    • NEMA 12 – IP55
    • NEMA 4 – IP66
    • NEMA 4X – IP66
