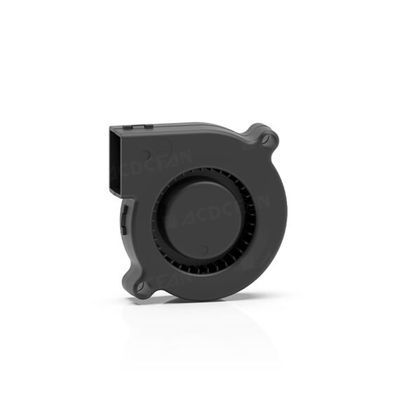

ACDC Fan - Model GRD5015 Series -DC Radial Cooling Fan

The GRD5015 Series is a high-performance cooling fan measuring 50x50x15mm, suitable for various industrial applications. The fan housing is made of die-cast aluminum available in black or white coating, with the impeller constructed from thermoplastic PBT UL 94V-0. It operates within a temperature range of -30 to 60℃, supporting an operation voltage range of 110V (±10%) and 220V (±10%). Featuring both ball bearing and sleeve bearing options, the fan ensures a dielectric strength of 5mA max at 1500V for 1 second and is impedance protected. Certifications include IP44 protection class and Class F insulation. The fan is designed for high service life, achieving 70,000 hours at 40℃ for ball bearings and 30,000 hours at 40℃ for sleeve bearings. The fan's weight is 500g, making it well-suited for industries such as telecommunications, medical, and intelligent manufacturing equipment.
