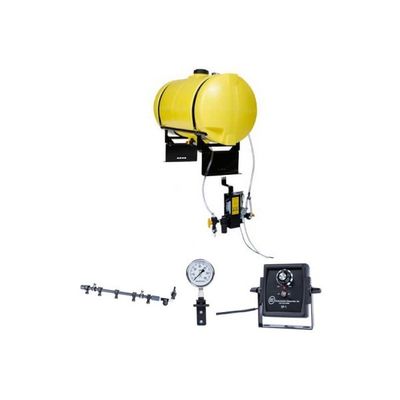

DE - Model KIT-LS-100 -Large Square Baler Kits
Dimensions: 57"L X 24" W X 39"H (when mounted to LS-1 Mount); 100 Gallon Capacity Tank with flat surface mounting brackets.
Most popular related searches
square baler
pump system
baler
pressure regulator
pump component
self-priming pump
stainless steel tank
filter nozzle
pressure cleaning
screen filter
- Pump Unit - Assembled and fluid tested in-house.
- 3.0 GPM self-priming, spec-built pump with wetted components compatible with acid based and acid producing products with a pH as low as 4
- Filter Assembly before the pump to protect the pump unit components and nozzles. Filter screen can be removed and cleaned.
- Pressure Regulation System allows fine tuning of pressure and circulation back to the tank.
- Stainless Steel Gauge - Internals, Externals, & Port to be most compatible with the acid-based and acid-producing products commonly found in our industry.
- Self-Fill System. You can connect the included Fill Stem Assembly to the pump unit to use the applicator pump to refill its tank.
- Wire Harness - Built and tested in-house.
- Pre-Terminated, no need to cut and splice wiring.
- Wire disconnect between tractor and baler.
- Mating terminals for SP-1 Speed Control (Included in KIT-LS-100).
- Large Square Baler Nozzle Tube Assembly - Built and fluid tested in-house.
- Nozzle fittings and spacing for large square balers installed.
- Includes all mounting hardware.
- Large Square Baler Nozzle Assembly
- Includes a variety of nozzle sizes that cover calibration for most product applications on large square balers.
- Large Square Baler Mounting Kit
- Semi-Universal mounting kit - fits most large square balers
- Slight modifications may be required for certain balers
- Semi-Universal mounting kit - fits most large square balers
- SP-1 Speed Control
- Built-In On/Off Switch.
- Allows application rate to be changed by adjusting the dial for changing harvest conditions.
- LED Status Indicator.
- 3 year warranty (for more information, click here)
- 4" In-line Gauge Assembly
- Large 4" gauge which is easy to ready, mounts in the pressure line between the pump unit and nozzles, typically on the front of a large square baler so it can be read from the cab.
- Stainless Steel Gauge - Internals, Externals, & Port to be most compatible with the acid-based and acid-producing products commonly found in our industry.
- 1 Year Applicator Warranty
