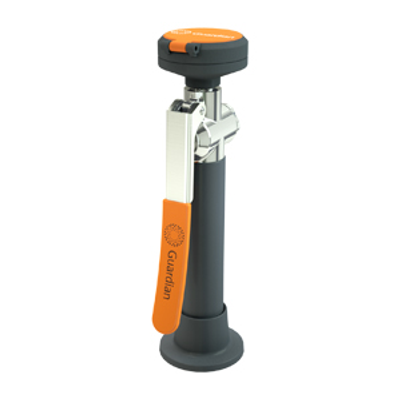

Guardian - Model G5020 -Deck Mounted Drench Hose Unit

spray head: Single FS-Plus™ spray head. Spray head has “flip top” dust cover, internal flow control and filter to remove impurities from the water flow.

Valve: Forged brass squeeze valve activated by stainless steel lever handle. Valve has replaceable stainless steel seat for exceptional durability. Valve closes when lever handle is released.

hose: 8` reinforced PVC hose. 300 PSI maximum working pressure.

mounting: Deck flange for countertop mounting. Flange has handle locator guide to position handle to face forward at all times.

supply: 3/8" NPT male swivel-type inlet.

sign: ANSI-compliant identification sign.

quality assurance: Unit is completely assembled and water tested prior to shipment.

Available Options

• bp In-line dual check backflow preventer installed on inlet of hose (G5020BP only). Note: Check with code authority for compliance with local plumbing code.
• DC Stainless steel dust cover for each spray head.
• FSH 8 ft. flexible stainless steel hose in place of PVC hose.
• HG Undercounter hose guide bracket to prevent hose from tangling or binding.
• LC Locking clip for valve handle. Valve stays open until locking clip is released.
• VB In-line vacuum breaker for installation between valve and spray head.
• TMV G3600LF thermostatic mixing valve precisely blends hot and cold water to deliver warm (tepid) water as provided by ANSI Z358.1 - 2014. Refer to Tempering Units section for complete technical and product selection information
