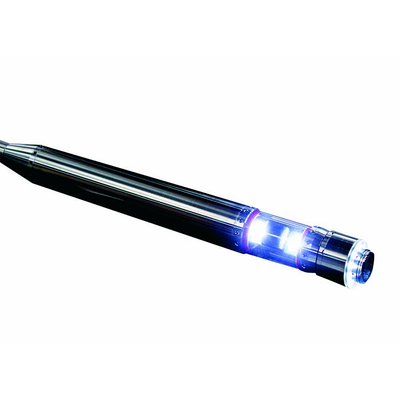

Laval - Model DC5150 -Deep Well Camera
The DC5150 Well Camera. The industry standard for over 50 years, this latest generation of our flagship product can be used in wells and boreholes 3 to 30 inches (7.62 to 76.2 cm) in diameter and down to depths of 5,000 feet (1,524 m).
Most popular related searches
well camera
water well borehole
underground storage tank
water well
deep well
borehole well
borehole
water borehole
underground tank
well water well
Comes standard with a DC5150 dual cam, dual view camera with continuous 360 degree rotation. This is the camera system that defines the industry, with unmatched visual clarity.
The DC5150 provides a comprehensive, detailed survey of water wells, boreholes, underground storage tanks and mineshafts. In addition to the standard downhole view, it offers a side-view perspective with continuous 360 degree rotation, with no external moving parts.
- Diameter: 2.35 inches (6 cm) O.D.
- Overall Length: 24.25 inches (61.6 cm)
- Housing: Stainless steel
- Lens: Scratch-proof sapphire glass viewing port
- Power Requirements: 100-200 volts DC at 50 watts (at maximum brightness)
- Total Camera Weight: under 14 lbs. (6.5 kg)
- Pressure Rating: Pressure tested and waterproof to 2,500 psi
- Connector: Water-blocked; LUS cablehead with UHF coaxial connector
- Scanning System: 540TVL
- Operating Temperature: 32° to 150° F (0° to 65° C)
