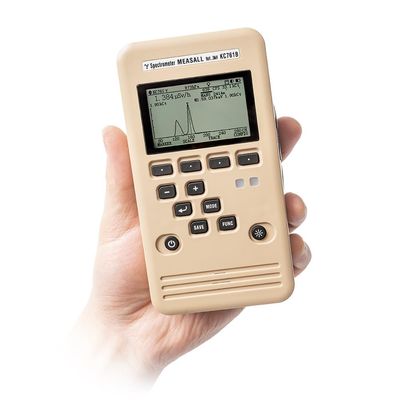

Deepace - Model KC761 -Handheld Energy Spectrometer – Radiation Detector
The KC761 is a radiation multimeter based on spectrometer analysis, featuring a scintillation detector as its primary sensing element and an integrated multi-channel analyzer. Through spectrometer analysis, it accurately identifies the energy and intensity of radiation, providing much richer radiation measurement information compared to Geiger counters.
With no consumable parts, the KC761 offers access to all measurement functions without the need for a connected smartphone. Powered by replaceable AA batteries designed for a storage life of up to 10 years, it’s ideal for long-term storage and emergency use scenarios. It boasts comprehensive external interfaces, supporting Bluetooth and Ethernet connections, and can be powered via Power over Ethernet (PoE), enabling the formation of sensor networks for long-term online monitoring. For enthusiasts of nuclear physics, the KC761 can output pulse signals via a 3.5mm jack to connect with a extend analysis system.
Designed with a rugged and flame-retardant shell, it’s suitable for outdoor applications such as exploration, scientific expeditions, accident investigations, and more. It operates reliably within altitudes ranging from -2000m to +30km, and even in vacuum conditions. With an IP65 waterproof rating and the ability to float if dropped in water, it’s built to withstand various environmental challenges.
- Main Sensor : 2.54cm³ CsI Scintillation with SiPM
- 662keV FWHM Resolution up to 7.5%
- 9keV~3MeV energy response
- High γ Sensitive : 70 cps/(µSv/h) 662keV
- Auxiliary Sensor : 9mm² PIN Sensor
- Energy compensated dose display and recording
- Wide Usage Range : -10?~+50?
- AA Battery powerd for 300h battery life
- Long-term storage
- MiMH battery charge ability
- Android and iOS App connectivity
- IP65 waterproof 1.5m drop protection
- Light Sound and vibration alert
