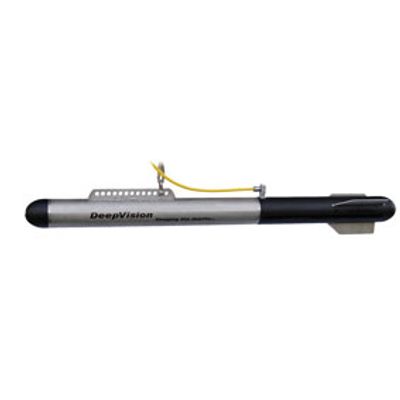

DeepEye - Portable Side Scan Sonar
DE680SAR, 680 kHz SAR; The DE680SAR search and recovery sonar is developed in close collaboration with the Swedish marine police. It is used with great success by, among others, the Swedish marine police for underwater search and recovery, such as locating drowning victims etc.
- Portable
- Up to 200 meter tow cable
- Digital chirp technology
- Large swath width
- High resolution
- Low power
Sonar Model: DE680SAR
Technology: Chirp Digital
Frequency: 680 kHz Center; range/resolution optimized
Horizontal beamwidth: 0.9º
Vertical beamwidth: 60º
Range: 5 to 50 m; 16 to 164 feet
Range resolution: 5 mm; 0.2 inch
Max operating depth: 100 m; 328 feet
Max cable length: 200+ m; 656 feet
Interface: RS485, GND, Supply,; Subconn LPBH4F
Length: 850 mm; 33.5 inch
Diameter: 60 mm; 2.36 inch
Weight: 9 kg; 19.8 pounds
Weight in water: 6.7 kg; 14.8 pounds
Materials: Stainless steel, PVC and Polyurethane
