Degreane - Model XARIA-C -Automatic Weather Stations

SHARE

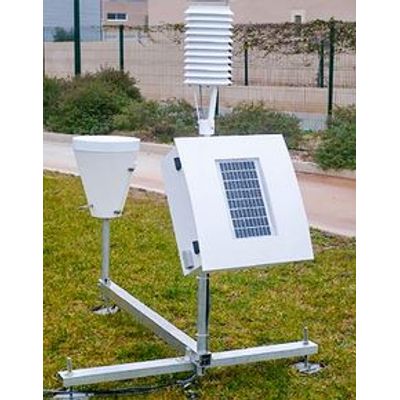

The XARIA-C automatic Weather station is designed to meet requirements for measurement and for the use of climatology networks and unmanned sites. It comes equipped as standard with 6 sensor inputs (temperature, humidity, rainfall, solar radiation, wind speed and direction) and one transmission line (PSTN or GSM) is available.

Most popular related searches
automatic weather station
weather station
meteorology system
wind recorder
atmospheric moisture
atmospheric parameter
transmission data
screening system
wind data
temperature sensor

XARIA-C  allows the  acquisition  of the  following  meteorological  parameters:  Temperature,  Humidity, Rainfall, Wind speed & direction, Global Radiation. By using fieldbus, measurements can be extended to the following parameters: Atmospheric pressure, Soil moisture, Cibus Wind etc... Recording of data is made each: 1 mn. 6 mn. hourly (30 mn in PATAC mode)

XARIA-C manages the following modes of exploitations:

  • Local Mode: on LCD screen integrated into the system module and/or diffusion of data each minute (ASCII chain with CAOBS format) via a fieldbus module.
  • Remote Mode: Transmission of the memory data on receipt of request from the concentrator platform or directly from the station, following the software configuration in memory.
  • Alert Mode: The transmission of information is initialized by detection of an alert level on several parameters.
  • Special Mode (PATAC type): XARIA station can be called by a concentrator via the phone network under PATAC protocol.
