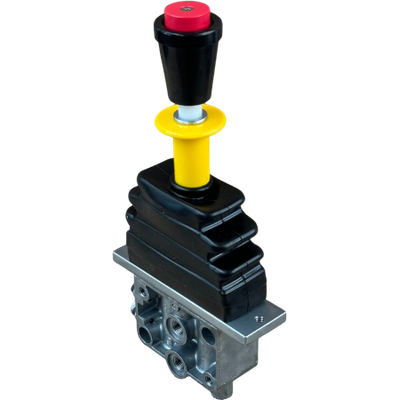

DEL - Model 1229 Series -Bankable Feathering Single Axis Control Valves with Auxiliary/PTO On/Off Control

• Stackable design utilizes one common and exhaust port with standard bolt length
• 0–120 PSI proportional control
• Center red button and yellow sleeve for On/Off control of air shift PTO or auxiliary air function
• Air shift can be converted to electric shift using a pressure sensor
• All 1229 valves feature feathering in both directions

Options:

• Valve spacer available for various straight-handle configurations
• PTO kickout fork to lift yellow collar and kick out red button
• Detent clip kit (holds position in upper, lower, or both directions)
