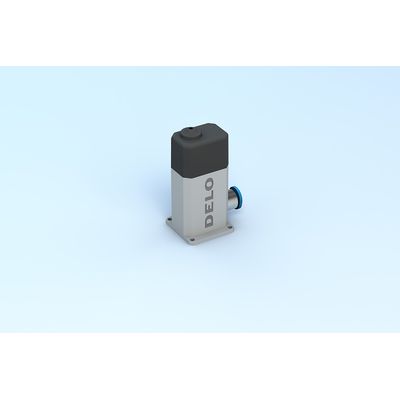

DELO - Model DELO-DropX VP2 -Cleaning Station for Dispensing Systems
The DELO-DropX VP2 is a cleaning station designed to efficiently maintain jet valves, needle dispensers, and volume dispensers in production environments. It features a contactless cleaning process facilitated by a vacuum range between 0.9 to -0.1 bar, allowing for the effective extraction of adhesive residues from dispensing valve outlets. This system incorporates an internal reservoir capable of holding up to 2 ml of various viscosity media, ensuring continuous and effective cleaning operations. Its compact design allows for seamless integration into existing production machinery. Known for facilitating rapid and precise adhesive dispensing, the DELO-DropX VP2 enhances production efficiency. DELO's innovative adhesive solutions, coupled with LED UV curing lamps and dispensing equipment, provide reliable, durable, and fast-curing bonds suitable for diverse industries such as microelectronics and automotive. DELO's products deliver precision, speed, and flexibility, optimizing the adhesive application processes.
Quickly and easily clean jet valves, needle and volume dispensers in production
DELO DropX reliably cleans dispensers when using adhesives in production. Media residues are extracted from the outlet openings of the dispensing valves. This process is made contactless thanks to a vacuum of 0.9 to -0.1 bar. The internal adhesive reservoir collects the residue and holds up to 2 ml of media at a wide range of viscosities.
Due to its compact size, it can be easily integrated into existing machines.
- Contactless cleaning
- Easy integration
- Compact design
- Simple operation
- Dimensions : 34 × 25 × 55 mm
- Weight : 33 g
- Material : Aluminum housing and silicone cover
- Media viscosity : Watery to very pasty
- Max. Volume : 2 ml
- Needed Vacuum : 0.1 - 0.9 bar
Quickly and easily clean jet valves, needle and volume dispensers in production
DELO DropX reliably cleans dispensers when using adhesives in production. Media residues are extracted from the outlet openings of the dispensing valves. This process is made contactless thanks to a vacuum of 0.9 to -0.1 bar. The internal adhesive reservoir collects the residue and holds up to 2 ml of media at a wide range of viscosities.
Due to its compact size, it can be easily integrated into existing machines.
Advantages at a glance:
- Contactless cleaning
- Easy integration
- Compact design
- Simple operation
