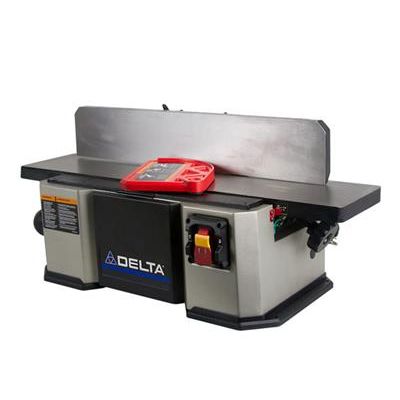

Delta - Model 37-071 6 -Midi-Bench Jointer
The 6 in. Jointer by Delta Machinery will perform clean, precise cuts every time. A heavy duty cast iron fence provides accurate jointing. With a precision-machined table and fence you’ll get to experience long lasting accuracy. Cut up to a max width of 6 inches and enjoy up to 1/8 in. depth of cut. The 37-071 Jointer comes with an impressive 5 Year Warranty.
Most popular related searches
- Durable cast iron construction increases weight providing stability and reducing vibration
- Precision-machining of the table and fence ensures long term accuracy
- Heavy duty, cast iron fence support system for accurate jointing
- Simple fence adjust system with adjustable positive stops at 90˚ and 45˚ in and out
- Up to 1/8 in. depth of cut
- Aluminum cutterhead with two knives. Simple jackscrew arrangement offers easy adjustment when changing knives
- Built-in dust blower ejects chips efficiently and virtually eliminates clogged dust chutes
- Includes a pair of push blocks for easily and safely moving material through the jointer
- Motor: 12 A, 120V, 1 Phase, 60 Hz, Universal
- Max. Depth of Cut: 1/8 in
- Cuts per Minute: 20,000 CPM
- Number of Knives: 2
- Table Dimensions: 6 1/4 in. D x 28 1/2 in. W
- Chip Chute Opening: 2 1/4 in. ID; 2 3/8 in. OD (included)
- Product Dimensions: 17 in. D x 28 1/2 in. W x 12 1/4 in. H
- Shipping Weight: 81 lbs.
- Max. Width of Cut: 6 in.
- lFence Positive Stops: 90˚ and 45˚ In/Out
- Cutterhead Speed: 10,000 RPM
- Aluminum Cutterhead Diameter: 1 7/8 in.
- Fence Dimensions: 4 5/16 in. D x 22 7/8 in. W
- Base Dimensions: 11 1/2 in. D x 21 in. W
- Weight: 76 lbs.
