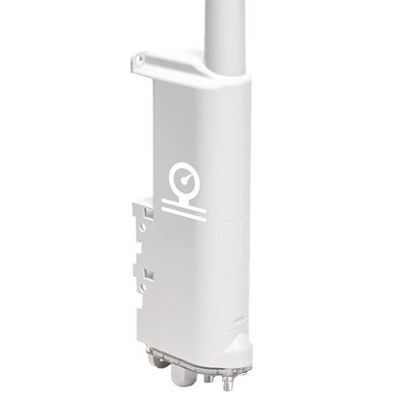

Delta - Model P -Air Pressure Device

• Pressure difference: relative to the atmospheric pressure or between two different zones
• 2 digital inputs / outputs:  for connecting to a PLC for tracing alerts or operating states
• 1 analogue input 0-10V: for connecting to a sensor
• Compatible with KARE and KARE+ services

Measure a delta pressure:

• Between the atmospheric pressure and the inside of the ventilation box

• On both sides of an element (e.g.: filter)

Collect data of a 0-10V sensor

e.g. ammeter clamp for distinguishing a power failure

On exceeding threshold(s)

Pressure difference or through 0-10V input

On digital input events

e.g.: indication of a machine fault
