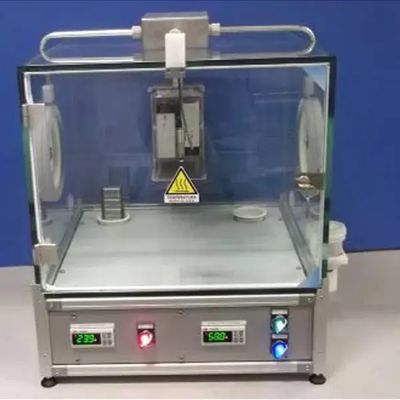

DeltaE - Model BT120 -Climatic Glass Chamber

Humidification system with cold vapor and ultrasonic emission. Electronic humidity control from room% up to 95%, accuracy ± 3.0% RH. Predisposition for the introduction of inert gas type N inside the Box. Predisposition for external low vaccum pump.

Most popular related searches

digital humidity sensor

digital temperature sensor

temperature sensor

humidity control

digital temperature controller

Glass/Alluminium Box:

Glass thickness: 0.8 cm
Dimension: 35x40x35cm
Access: One front and two lateral doors
Other: Four inlet/outlet Gas/Liquid

Heating:

Heater forced air and/or static air from about 400W
Capacity of air circulation equal to 35m3/hour maximum temperature on the surface of 60° C;
Temperature Control: PID-type 3-digit display, precision 0.25% ± 1 digit
Temperature Sensor: Resistive temperature sensor on the ceramic carrier with platinum thin film PT100 Class A

Cooling:

Power Type: 50W Peltier System

Humidification:

Steam Generation: Ultrasonic Type
Water reservoir
Humidity Control: from Ambient to 100% with PID system with 3-digit display, precision 0.25% ± 1 digit
Humidity Sensor: Capacitive type

Power Supply: 220Vac 10A

DeltaE - Model BT120 -Climatic Glass Chamber

Technical Specification
