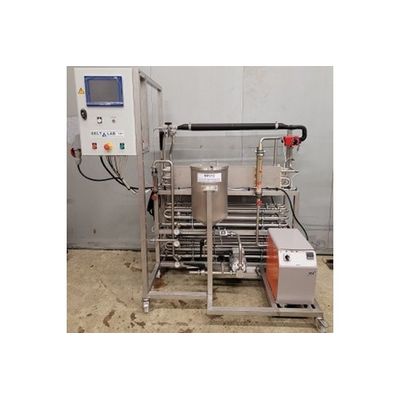

DELTALAB - Model MP312CR -Pasteurization Pilot with Chambering, Tubular Exchangers

The pasteurizer is made up of three heat exchange zones in 304L stainless steel:

1. Preheating approx. 0.5m²: tubular heat exchanger incoming / outgoing product,
2. Pasteurizer 1,0m² approximately: tubular exchanger product / water,
3. cooling about 0.5m ²: tubular product / water exchanger.

The circuit is made of 304L stainless steel and in the SMS standard, it includes:

• a rooming area,
• 30L 30L stainless steel launching tank with lid and drain valve
• A stainless steel centrifugal pump 4bars 250L / h
• a stainless steel needle flow meter (0-160 L / h), on the product supply circuit,
• a flow meter for cold water (60-600 L / h)
• a flow meter for hot water (150-1500L / h)
• a diversion valve at the outlet of the pasteurization zone,
• 5 Pt 100 temperature probes, 3 thermometers,
• a diversion valve depending on the temperature measurement at the pasteurization
• outlet
• external connections: SMS standards
• a hot water production group
• an electrical box with pump control and protection, temperature controller,
• integrated touch screen temperature display and USB data logging.
• Communication with the PC, software for calculating the pasteurizing value

1. Option 1: pasteurization of viscous products (max viscosity: 1500 cPo.): A 3 bar max impeller pump, on a drive, used for the process and for cleaning in place, an electromagnetic flowmeter for measuring the feed rate
2. Option 2: Pasteuristic Value Calculation Software
