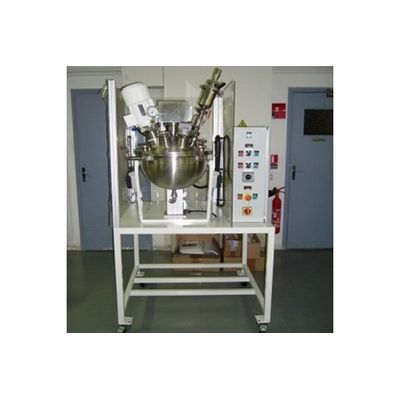

DELTALAB - Model MP411-A -Pellet Granulator Mixer

It is also used for the formulation of creams and emulsions in cosmetology or food industry :


• Study the unitary operation of mixing.
• Study the unit operation of wet granulation
• Study the unitary drying operation by conduction and under vacuum
• Study the influence of different binders on wet granulation.
• Study the influence of the parameters of the operation on this process (stirring speed, temperature, pressure)

Temperature, pressure, stirring speed, stirring torque.

Tank :

• A bowl with a hemispherical bottom surmounted by a straight ring part and a conical upper bottom, made of 316 L stainless steel. It has a double stainless steel casing. Its capacity is 10 liters useful.
• The double jacket is insulated by a stone wool insulation with 316 stainless steel sealing.

The lid includes the following taps or accesses :

• A porthole with lighting.
• A tapped sleeve on tank for implantation of a Pt 100 temperature probe.
• Vacuum taking tubing.
• A threaded sleeve for manometer.
• Tubing for mounting a valve and vacuum valve.
• Tubing for filling powders and liquids.
• Tubing for mounting the filter

A fast disperser

This disperser is fixed on the flange located at the upper part of the apparatus and comprises :

• An electric motor
• A coupling sleeve

Turret support, stainless steel with bearings and dry mechanical seal

• A three-way anchor
• Anchor speed
• It is fixed in the central part of the lid and comprises :
• a geared motor
• a support turret, made of stainless steel, with bearings and dry mechanical seal.
• A steel table equipped with 4 wheels
• A telescopic guide column
• security
• Electrical safety on lid lifting by IV key

Accessories

• 1 vacuum-breaking tap
• 1 manovacuometer
• 1 product temperature probe
• 1 porthole with lighting
• 1 stainless steel housing for the filter with polypropylene cartridge
• 1 safety valve in stainless steel
• 1 brass safety valve

Electrical equipment and control cabinet

• 1 three-phase motor.
• 1 electronic speed variator, variable speed by potentiometer. Digital display of speed.
• 1 three-phase motor
• 1 pocket of programming allowing to follow also the parameters of agitation (in particular the absorbed powers) push button stop punch.
• 1 product temperature display. control of the lighting of the machine by switch on the window placed on the lid.

This unit works with :

• The heating group
• vacuum plant
