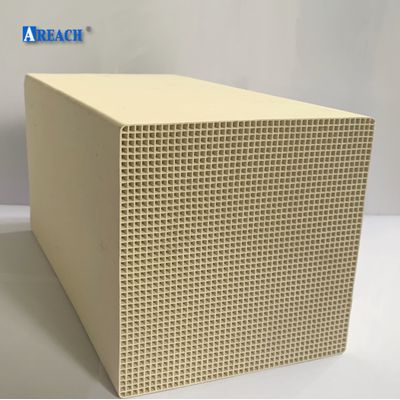

AREACH - Model 43*43 cells -Dense Alumina Blocks
Dense Alumina blocks also called ceramic heat exchange matrix as a reliable heat exchange media with thermal properties is the key components of the thermal storage system widely used in RTO (Regenerative Thermal Oxidizers) media and maintenance. A regenerative thermal oxidizer utilizes a unique regenerative style heat exchanger. Ceramic blocks with a pattern of channels much less susceptible to clogging. Plus dense alumina blocks as a ceramic structured packing made of thin-walled ceramic suitable for corrosive applications, where other materials or plastic are not suitable.Most popular related searches
industrial air pollution control system
regenerative thermal oxidizer
industrial air pollution control
air pollution control system
VOC emissions treatment
ceramic structured packing
industrial air pollution
thermal oxidizer media
pollution control system
air pollution control
Material： Dense Alumina
Regular size: 100*100*100mm,100*150*150mm.150*150*150mm.150*150*300mm
Cell : 43*43
Application: RTO for industry, air pollution control equipment.
Dense Alumina Block Physical Property
- Density 2.4-2.7
- water Absorption≤ 2%
- Coefficient of thermal expansion（20-800℃）≤ 5x10-6k -1
- Specific Heat (20-1000℃):1000-1150J/Kg.K
- Thermal Conductivity (20-1000℃):1.5-2.5W/m.k
- impact thermal resistance≥300℃/Min
- Strength （ A axis）≥34MPA
- Compressive（ B axis）≥8
Material Chemical Composition
AL2O3/ Alumina Oxide:55-65%
SiO2 /Silicon Oxide :25-35%
MgO:3-5%
Fe2O3+TiO2:2-4 %
Others<5%
Higher heat storage.
Higher Alkali resistance .
Small resistance loss.
Outstanding crack-resistance.
Low heat expansion .
High specific heat capacity .
High thermal shock resistance.
Good Thermal Conductivity .
Resolve siloxane clogging, cut costs and boost uptime in VOCs emission treatment process.
