AREACH - Model 25*25 cells -Dense Cordierite
High-efficiency heat exchanger as heat storage body loads with sufficient heat, by the advantage of large specific surface area, capable of absorbing heat rapidly, small heat resistance, good thermal conductivity, excellent thermal shock resistance, realize quickly exchanging heat, reducing energy in the strict sense (up to 97% of true thermal energy can be recovery).Most popular related searches
industrial air pollution control system
industrial air pollution control
air pollution control system
industrial air pollution
pollution control system
air pollution control
RTO ceramic
industrial air
air pollution
air pollution system
1. Material : Dense Cordierite
2. Sizes : 100*100*100mm,100*150*150mm,150*150*150mm,150*150*300mm
3. Application : RTO for industry , air pollution control equipment.
4. Cells : 25*25

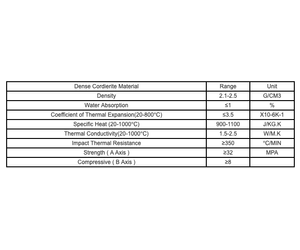

Physical Property
Density ：2.1-2.5G/CM3
water Absorption ≤1%
Coefficient of thermal expansion（20-800℃）≤ 3.5x10-6k -1
Specific Heat (20-1000℃)：900-1100J/Kg.K
Thermal Conductivity (20-1000℃)：1.5-2.5W/m.k
impact thermal resistance≥350℃/Min
Strength （ A axis）≥32MPA
Compressive（ B axis）≥8

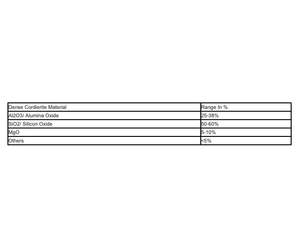

Material Chemical Composition
AL2O3/ Alumina Oxide：25-38%
SiO2 /Silicon Oxide ：50-60%
MgO：5-10%
Others<5%
High thermal shock resistance.
Long service life.
Low maintenance costs.
Good Thermal Conductivity .
Good Thermal shock resistance .
Heat exchange and storage .
Low drop loss.
