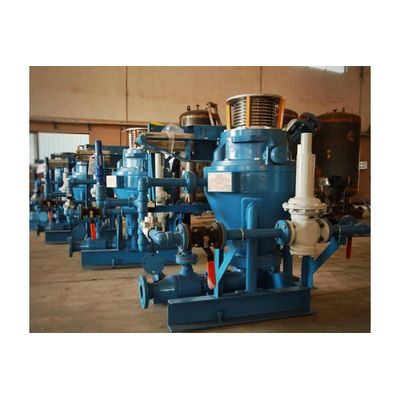

Macawber Denseveyor - Dense Phase Pneumatic Conveying System
Unlike a Sandpump, a Denseveyor is a dense phase pneumatic conveying system that handles difficult-to-convey materials – hot, abrasive, and in some cases, wet. It can seamlessly convey materials (dry bulk powders, granules and others) using gases such as compressed air or nitrogen. Its smooth low velocity conveying ensures gentle handling of friable products, which helps prevent degradation & separation of blended materials.
Compared to other dense-phase pneumatic conveying systems, Denseveyor is cost-effective and provides an excellent combination of durability, reliability and performance. Its simple design has just one moving part – the patented Dome Valve. This makes it a fully enclosed conveying system that offers a dust-free process and is environment-friendly. What’s more, it is also energy-efficient, reduces pipe wear, and maintenance downtime.
As a leading manufacturer of Denseveyor – advanced dense-phase pneumatic conveying system, we can provide fully customizable systems depending on the material characteristics and conveying distances. Our products can be easily adapted to work alongside existing process layouts and equipment footprints.
- Denseveyor is a fully assembled, ISO 9001:2015 quality assured conveying system that is tested before shipment.
- It operates automatically when signalled and has integrated controls.
- It is used to convey materials at very low velocities to prevent the degradation of friable materials. It can be used to convey materials without the segregation of blended materials.
- This dense phase conveying system can handle ambient temperatures from up to 400 deg. C and has a standard pressure rating of up to 100psig (7barg).
- It offers a fully-enclosed, dust-free operation for a clean environment. It is also energy-efficient and built to last.
- It can achieve very high phase densities (material-to-air ratio) and can be used in multi-Denseveyor orientation for multiple points high capacity applications.
- Denseveyor system uses the patented Macawber dome valve at the material inlet valve that provides a high level of reliability.
- Denseveyor is the most proven system in the world with more than 10,000 installations spanning over 45 years.
- Foundry Sands: Resin-coated, blended new & reclaimed, and premix bond.
- Coal/Coke/Fly Ash: Wet, lump coal, coke breeze, dust & fly ash, siftings, and wood ash. Go here to learn more about ash handling conveying systems.
- Chemical/Powders: Titanium dioxide, phenolic resin dust/powder, aluminium trihydrate, PVC & CPVC, resin pellets & chips, pebble lime & limestone.
- Raw and Prepared Foods: Raw & roasted peanuts, almonds, sugar, raisins, non-dairy creamer, granular yeast, corn, fructose, and salts.
- Alternate Fuels: Wastewater treatment sludges, paper & pulp wastes, and incineration.
For more information on Denseveyor – an advanced dense-phase pneumatic conveying system – get in touch with us!
