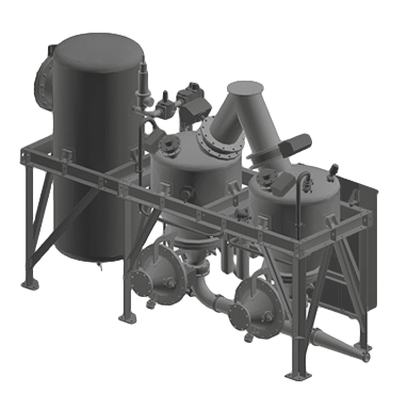

Kovalus Relco - Dense Phase Pressure Conveying System

The art of gentle conveying of fragile powders by pressure. The RELCO Dense Phase Pressure Conveying System is ideally suited for this along with high rates transfer. The art is in the ability to control the powder velocity and pressure. One to stop powder from stalling the other to regulate the speed of powder moving. Every system is custom engineered based on the conveying parameters to provide the ideal solution. One to stop powder from stalling the other to regulate the speed of powder moving. Every system is custom engineered based on the conveying parameters to provide the ideal solution.

Overall

Electronic control of pressure and flow
Special valve seats resistant to abrasive powders
Solenoid valves, regulators and valves housed in SS cabinet
Instantaneous rates up to 60,000kg/hr (160,700lbs/hr)
Long conveying distance
Gentle conveying of fragile agglomerated powders
Minimum segregation of powders
Conveying long distances
Particularly suited to multiple destinations
Reduced convey line size vs lean phase
Good solution to reduce build-up of convey line for carbohydrate powders
Reduced bin vent size

COMPONENTS

Dense Phase Pressure Vessel(s)
Control Cabinet
Air Receiver
Bin Vent
Receiving Hopper / Silo
Line Injectors

SUITABILITY

Single source to multiple destinations
Ideally suited for conveying to Silos
Low product break down
Great for handling fragile powders
Instantaneous rates
Up to 60,000kg/hr (160,700lbs/hr)
Typical conveying distances
200m horizontal (656ft)
30m vertical (98ft)
Powder
Ideally suited to carbohydrate powder such as Lactose and Permeate
Most suitable to reduce convey line build-up

CONVEYING PARAMETERS

Powder
Bulk Density
Convey Rate
Convey Route

RANGE OF POWDERS TO BE HANDLED

Lactose
Permeate
Whey Protein Concentrate
Whey Protein Isolate
Whole Milk
Skim Milk
Infant Formula
