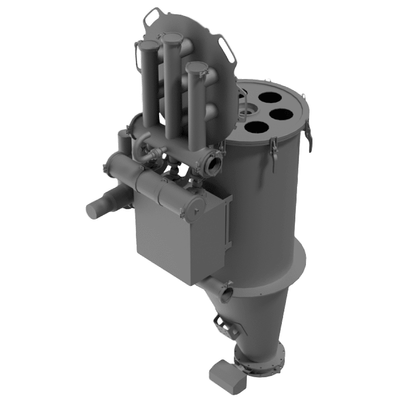

Kovalus Relco - Dense Phase Vacuum Conveying System

The art of gentle conveying of fragile powders by vacuum. The RELCO® dense phase vacuum conveying system is ideally suited for this along with high rates transfer. The art is in the ability to control the powder velocity and pressure. One to stop powder from stalling the other to regulate the speed of powder moving. Every system is custom engineered based on the conveying parameters to provide the ideal solution.

Overall

Special convey line valves for extended seat life
Automatic control of conveying pressure
Solenoid valves and regulators housed in SS cabinet
Easy to upgrade to reverse pulse sock cleaning
Easy opening for cleaning
Instantaneous rates up to 60,000kg/hr (160,700lbs/hr)
Short to medium conveying distance
Gentle conveying of fragile agglomerated powders
Suited to heat sensitive and abrasive powders
Particularly suited to multiple sources
Reduced convey line size vs lean phase
Dustless

Components

Vacuum Pump
Inline Filter
Vacuum Receiver
Pick-up Hopper / Pick-up from Silo

Suitability

Multiple sources to single destination
Ideally suited for conveying from Silos
Suited to low height sources
Low product break down
Great for handling fragile powders
Instantaneous rates
Up to 60,000kg/hr ( 160,700 lbs/hr)
Typical conveying distances
60m horizontal (197ft)
18m vertical (59ft)
Continuous conveying
This is usually discouraged due to the rotary valve and the possibility of product contamination

Conveying Parameters

Powder
Bulk Density
Convey Rate
Convey Route

Range Of Powders To Be Handled

Whey Protein Concentrate
Pick-Up Hopper Whey Protein Isolate
Whole Milk
Skim Milk
Infant Formula
